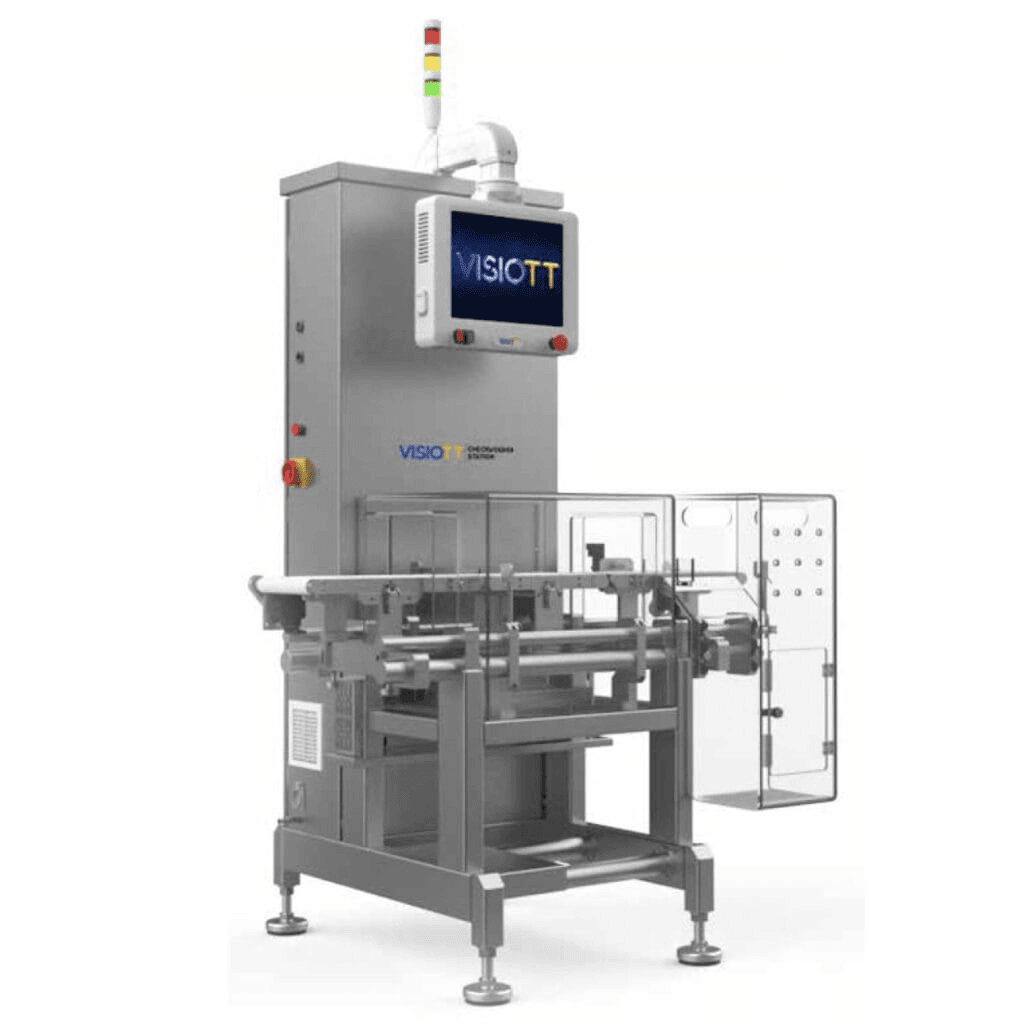

Visiott PCW-100
Pharmaceutical checkweigher station measuring products between 5g and 1000g at up to 300 cartons per minute with ±0.01g accuracy.
Key specifications
- Measuring Range: 5 g - 1000 g
- Accuracy: ±0.01 g (10 mg)
- Repeatability: 0.1 g (100 mg)
- Capacity (max): 300 pcs/minute
- Product Length Control: Yes
- Voltage / Frequency: 110V / 220V / 50-60 Hz
- Dimensions (WxLxH): 1250 x 1845 x 975 mm
- Material: Stainless Steel
- Computer: Fanless Industrial Computer
- Monitor: Touch Screen Industrial Monitor
- Reject Mechanism: Piston or Nozzle (Compressed Air)
- Handheld Scanner: Wireless
The VISIOTT PCW-100 is a Pharmaceutical Checkweigher Station designed to ensure total quality and patient safety by precisely measuring pharmaceutical cartons before they leave the production line. It measures product weights between 5g and 1000g at speeds up to 300 cartons per minute with an accuracy of ±0.01g (10 mg) and repeatability of 0.1g. The system uses a load cell under the measuring conveyor to detect weight changes, processing data through special mathematical functions to determine acceptance or rejection. Rejected products are sent to a locked rejection box via air piston. Control
