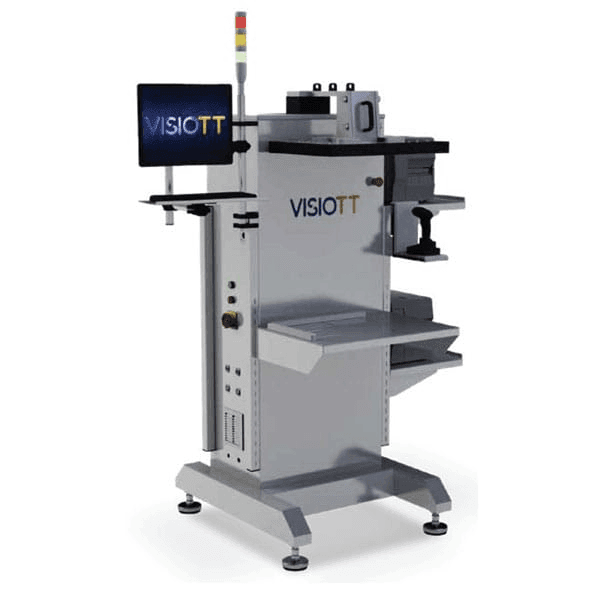

Visiott SMAS-100
Semi-automatic aggregation station with multi-reading functionality, 10 Mpx camera, and 99.5% code reading success rate for case and pallet aggregation.
Key specifications
- Reading Area: 350 x 450 mm
- Camera Resolution: 3856 x 2764 px (10 Mpx)
- Voltage / Frequency: 110V / 220V / 50-60 Hz
- Dimensions (WxLxH): 1000 x 2200 x 1660 mm
- Material: Stainless Steel
- Computer: Fanless Industrial Computer
- Monitor: Touch Screen Industrial Monitor
- Working Height: 400 mm
- Trigger: Foot Pedal
- Printer: Zebra, Cab
- Handheld Scanner: Wireless
- Wheel: Tente
The VISIOTT SMAS-100 is a Semi-Automatic Aggregation Station designed for manual packing processes, combining packaging and aggregation stages into one efficient system. It reads multiple 2D data matrix codes of serialized products in a case using an industrial high-speed 10 Mpx camera (3856 x 2764 px) with specially designed illumination. The automatic accordion system analyzes codes in each layer, with servo motor position adjustment ensuring consistent focal length. A foot pedal trigger allows hands-free decoding. After reading, the system saves decoded codes and automatically generates the
