Rotary Vacuum Fill Seal Machine
Rotary Vacuum Fill Seal Machine

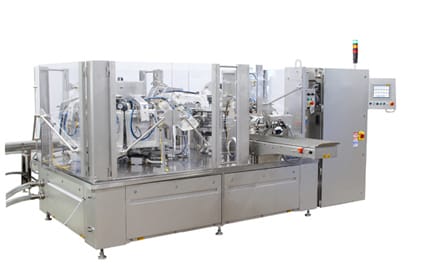

PSG LEE’s RV series offers a rotary vacuum fill seal machine with a vacuum chamber coupled to an automatic packing machine.
It is the best solution for customers who want high level vacuum packing with high productivity.
| model name | RV-1010 | RV-1212 |
| number of sections | 10 | 12 |
| number of vacuum chamber | 10 | 12 |
| production speed (BPM) | 30 ~ 40 | 25 ~ 35 |
| * Production speed may vary depending on product characteristics, pouch conditions, operator skills and ambient filling conditions | ||

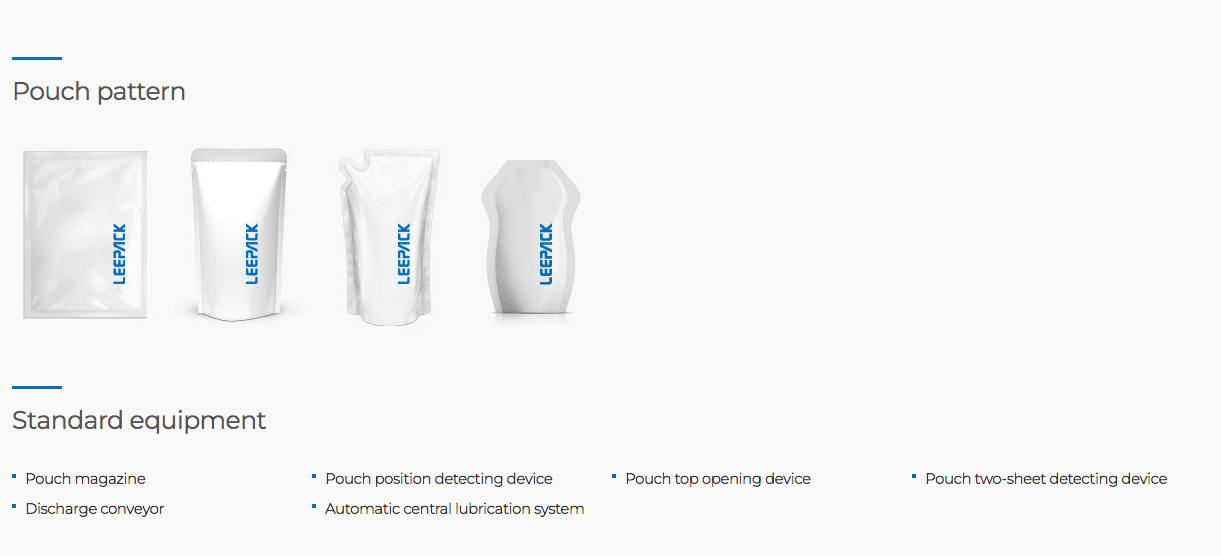

| pouch width (mm) | 100 ~ 220 | 100 ~ 240 |
| pouch length (mm) | ~ 300 | 100 ~ 380 |

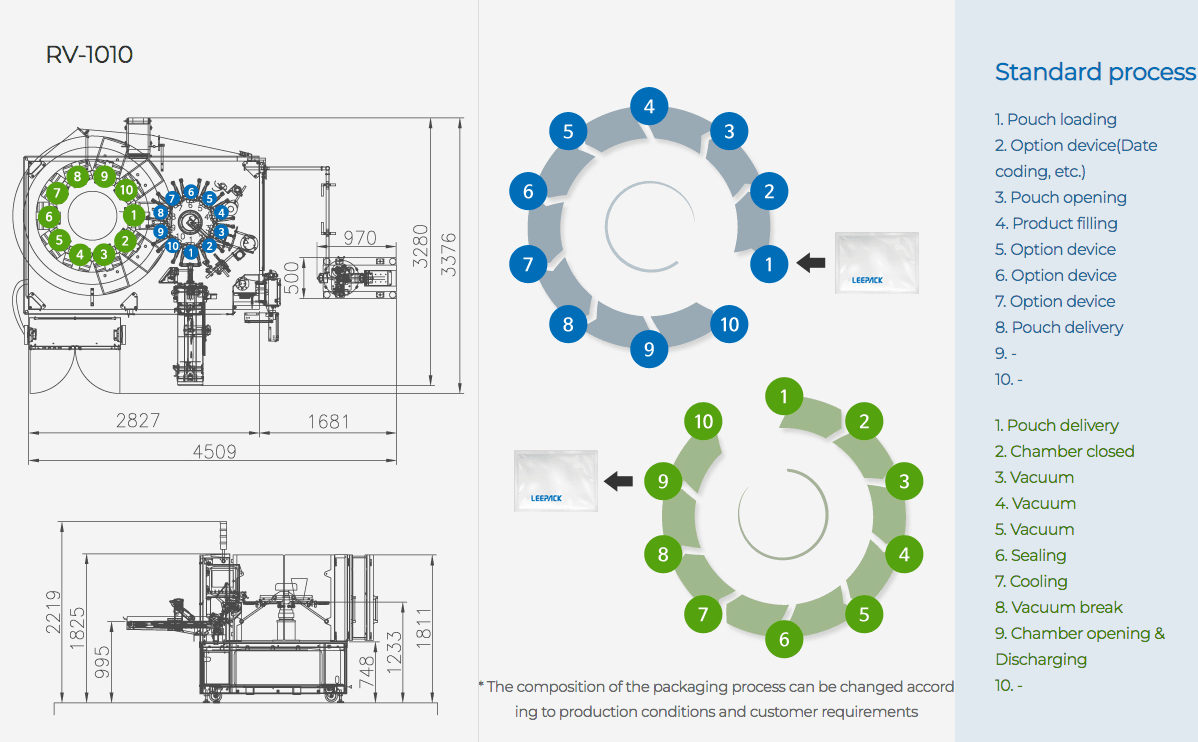

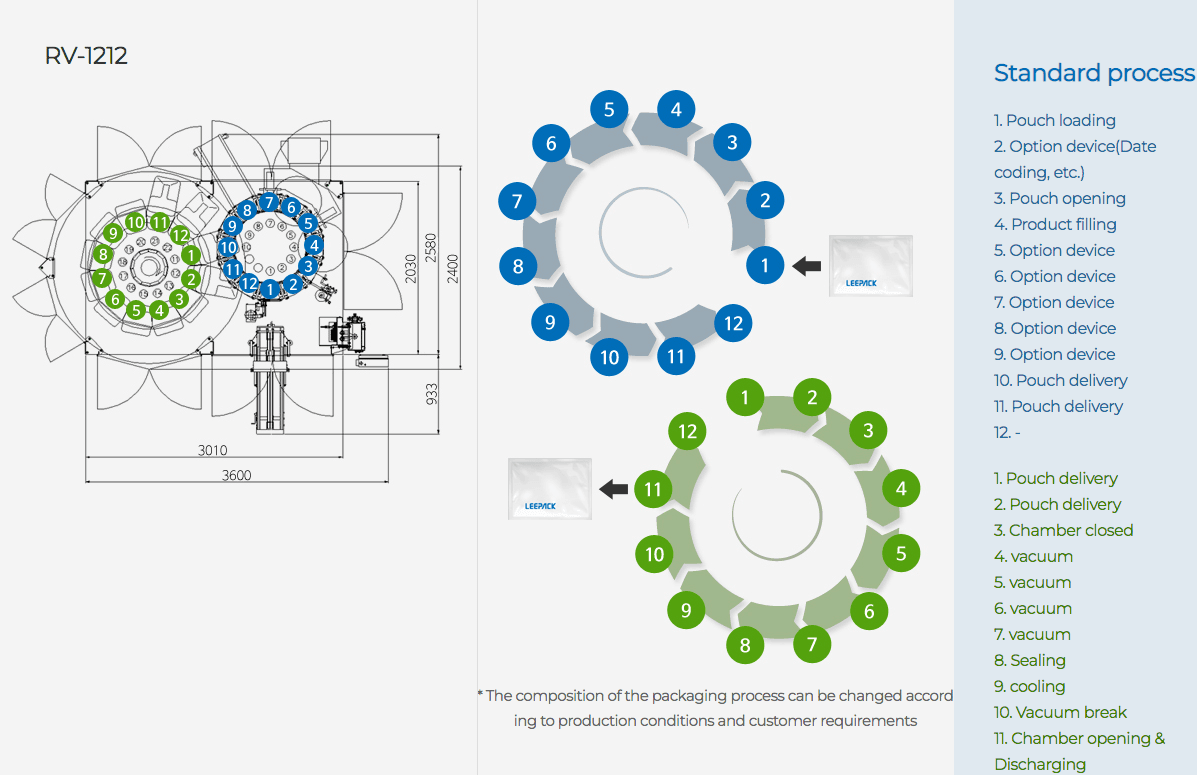

| Equipment Dimensions & Standard Process | View Details | View Details |
 |
| PSG LEE OPTIONS | |
| Long type pouch magazine | |
 | Pouch magazine can be configured longer than the basic type (1,200mm/L: 1,900mm) and can be loaded with a large number of pouches Efficient pouch loading for the spout pouch and Standup zipper pouch Customizable to fit on site |
| Printer (Inkjet, Thermal transfer, Laser, etc.) | |
 | Various printer devices are available such as inkjet, thermal transfer, laser, hot foil and embossing type. All brands of inkjet printers are available, and the printing position can be freely adjusted relative to the area of the pouch. Ribbon type, which is a unique product of PSG LEE, has a embossing effect at the same time as the date printing (Manual replacement of metal types) The thermal transfer method produces the best print quality, and content can be changed through the touch screen. Laser printing is suitable for pouches made of aluminum, and the printed information is not erased. |
| Pouch’s bottom gusset opening device | |
 | The device that expands the bottom gusset of Stand-up pouches using air. Prevents a pouch top reclosing during pouch moving. Prevents a product overflowing due to folded bottom gusset. Available for Stand-up pouches and corner spout pouches. |
| Safety door | |
 | Designs and parts that meet international standards are employed. Proven interlocking system for work safety |
| Spout pouch Magazine | |
 | Optimized configuration for corner spout pouch application. Available both Spout pouches and other kinds of pouches. |
| Optical Character Recognition | |
 | Vision camera is equipped to allow for checking the status of printed information. Selection can be made between OCR(text reading) and checking the existence or not of printed information. In the event of a printer malfunction, there are no product filling and sealing process to reduce packaging material loss and avoid consumer's negative claims. This is applicable to all kinds of printers. |
| Zipper opening device | |
 | PSG LEE's patented, unique zipper opening system. Available both zipper pouches and non zipper pouches. |
| Wash/Wipe down structure | |
 | Easy maintenance by adopting Washdown design. |
| Lifting type pouch magazine | |
 | Equipment to load and feed pouches vertically. Easy to install even in narrow packaging sites. Adjustable magazine width according to pouch size. Applicable only to flat pouches. |
| Weight Feedback System | |
 | Improved charge precision through a weight feedback system using the load cell method. If more than one type of content will be used, measuring will be done after the first charge, and the remaining amount of the target weight will be filled during the second charge. Suitable for powder products with poor flowability and expensive packaging materials |
| Zipper Closure | |
 | Device that closes zippers on zipper pouches Prevents zippers from being contaminated by content |
| Separated control box | |
 | The control box is installed separately from the automatic packaging machine, so positioning is flexible Blocks the influx of water, detergent, or other residues completely during water wash |
| Swivel filling system | |
 | This system minimizes overflow of low viscosity products due to inertia during filling and increases the speed of production by moving the nozzle between pouch opening and filling station. Swivel filling system suitable for liquid products that generate large amounts of foam during filling. |
| One lane merging discharge conveyor | |
 | When producing more than one product at a time, this device discharges products in a row for easy post processing. |
| Ultrasonic sealing device | |
 | This device seals a pouch opening by applying ultrasonic vibration. It offers advantages for avoiding leakage during liquid product packaging. |
| Tube-roll PE/EVA film forming system | |
 | This device cuts into pouches and loads roll-shaped PE or single-layer tube film. This offers a suitable production method for packaged goods such as sugar, salt and flour. |
| PLC program | |
 | Applicable for PLCs such as Allen Bradly, Siemens, B&R, LS, etc. |
| Neutral gripper system | |
 | This device divides the gripper by mounting a neutral gripper between the grippers on simplex and duplex automatic packing machines. This is bonded to allow fast production of narrow pouches. |
| * Please check for availability of model-specific options. |
