Automatic machine for filling, sealing and shearing of pre-formed vials and unit-dose in plastic film.

Description

Valmatic Uni-Dose Series

Valmatic Mi.Ri. Automatic Mini Filler Machine

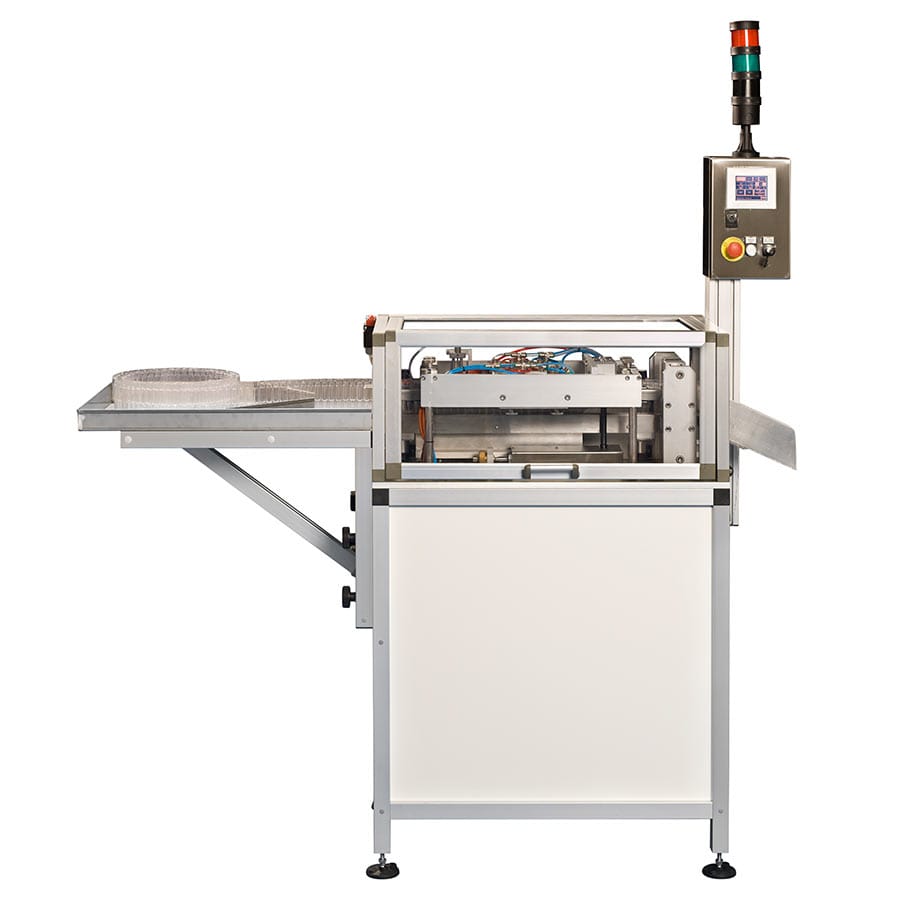

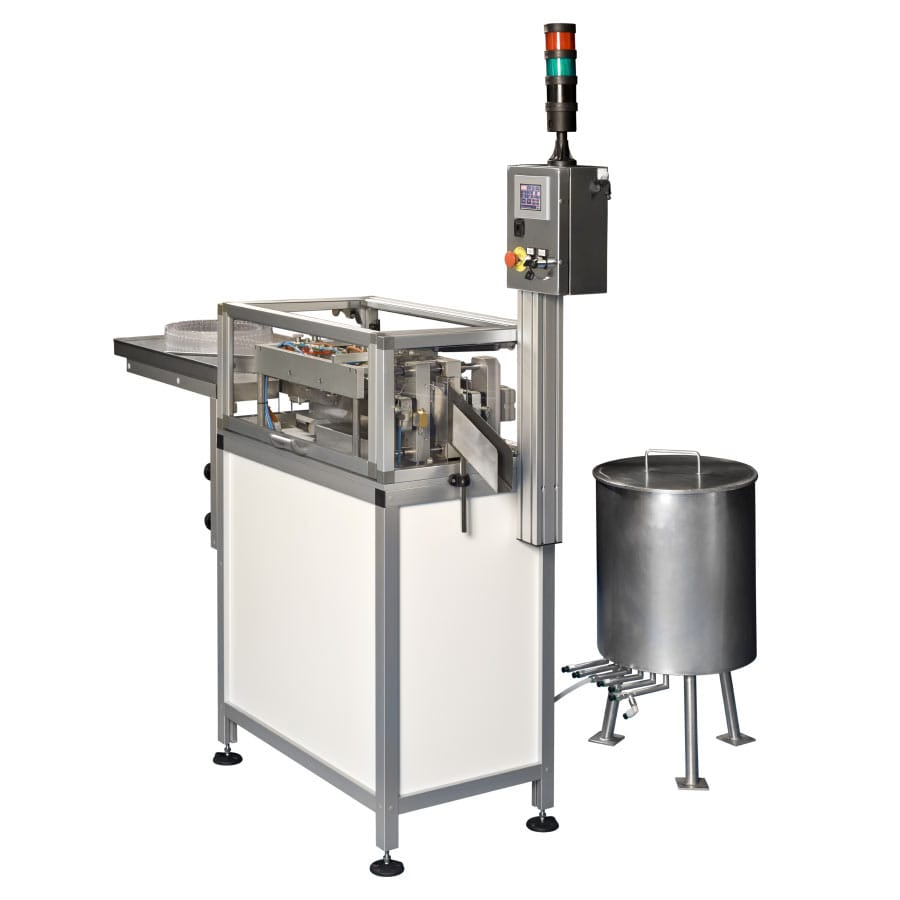

Valmatic Mi.Ri. is an automatic machine for filling, sealing and shearing of pre-formed vials and unit-dose in plastic film. It is a simple in-line structure and its use is ideal for small companies and laboratories with limited production. The material supply of the machine is made from reels of film already pre-formed with containers at fixed space and open top for filling and sealing.

The capacity of the filling is from 2 to 15 ml with customized shapes available. Mi.Ri. can fill liquid products with different viscosities. Discharge from machine has a production strip of filled and sealed containers, the containers strip can have a variable length and the containers of the same strip are easily detachable from each other via a pre-cutting tool. Mi.Ri. is an entirely pneumatic automatic machine and is managed from an operator panel that allows set-up for production speed, strip length and sealing temperature.



Specifications

Power installed: 0.7 (kW)

Voltage: 380 Volt; 50 Hz + Neutral

Air requirements: 50 (Nl/1”))

Air pressure: 6 (bar)

Consumes water: 3 (Liters/min.)

Water pressure: 2 (bar)

Water temperature 5-10 °C

Type of product: Uni-dose from 2 to 15 ml

Speed: 1,200 containers/hr

Material for production: PVC+PE, PVC+EVOH+PE, PET+PE, PET+EVOH+PE
