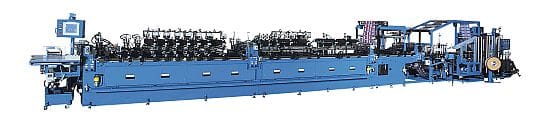

Nishibe 600-SPG-ΔG

Nishibe 600-SPG-ΔG

ZIPPER BOTTOM FOLDED STAND UP POUCH

AND TWO SIDE SEAL POUCH MAKING MACHINE

Highly productive machine customized to produce zipper bottom folded stand up pouch and two side seal pouch.

Description

Nishibe 600-SPG-ΔG

  1. Produces bottom folded stand up pouch and two side seal pouch with zipper from one roll.
  2. A custom-made machine which meets your needs.
  3. Possible to produce stand up pouch made with bottom tape as option.

Nishibe 600-SPG-ΔG Options

Specifications

Production speed
Bottom folded stand up pouch: 30-100 cycles/min.
Zipper bottom folded stand up pouch: 30-80 cycles/min.
Bottom folded two side seal pouch: 40-100 cycles/min.
Zipper bottom folded two side seal pouch: 30-80 cycles/min.
* The production speed may be affected by the type of material and the cutting length.
Film Size Range W = 400mm-1250mm Diameter:800mm
Pouch Size Range
  • Bottom folded stand up pouch:
    …… W = Max.250mm, L = Max.500mm (1-lane)
  • Zipper bottom folded stand up pouch:
    …… W = Max.250mm, L = Max.500mm (1-lane)
  • Bottom folded two side seal pouch:
    …… W = Max.500mm, L = Max.500mm
  • Zipper bottom folded two side seal pouch:
    …… W = Max.250mm, L = Max.500mm
Bottom gusset depth Max. 60mm
Machine weight 10,500kg (Approx.)
Main Web Stand Horizontal Single Web Stand
Main Web Shaft 3-inch Air Shaft
Main Web Brake Automatic Control by value input
L.P.C. Mitsuhashi Line Position Controller
Bottom tape punching unit Single-punch holder 1 sets, Holder mount 1 set, Punch diameter 15mm, Evacuation unit 1set
Zipper Sealing and Cooling Unit Heater (L:620mm), Cooling Bar (L: 300mm)
Longitudinal Sealing Unit Heater L:620mm (L:520mm for standing pouch) : 4pcs.
Longitudinal Cooling Unit Cooling Bar (L:320mm)
Razor Unit at the middle feed roller Razor Holder : 1pc., Trimming Guide
Bottom Sealing Unit 5 units (Point Sealing Unit: 3 units)
Bottom Cooling Unit 2 units
Razor Unit at the front feed roller Razor Holder : 4pcs., Trimming Guide
Monitor Touch Screen
Table Conveyor Up and down movement (Separate type)
Alarms Start Discharge, Web Run Out, Web End, Web Splice, Hole error, Zipper Splice
Accessories Guillotine knives : 1set
Thermocouple Attaching type
Option Second Stage Unwinder
NIRECO Tension Controller
Bottom Tape Punch Refuse Detector
Automatic Bottom Tape Punch Positioning Unit
Ultrasonic Sealing Device For Zipper Point Sealing
Skip Drive
Powder Sprayer
Punching Unit
In-line Corner Punching Unit
Evacuation Unit
Twin Cutter
Cutter Controller
* Operating system is Windows XP.
* The above values and the configuration may be changed for improvement without previous notice.
* Machine specifications are slightly different from Japanese ones. Please ask our sales staffs for details.
