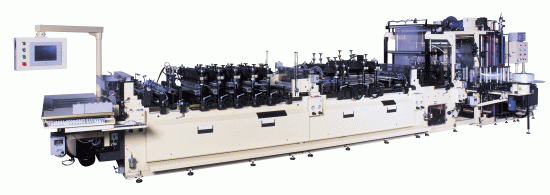

Nishibe SBM-600-SP

Nishibe SBM-600-SP

STANDING POUCH/3-SIDE SEAL POUCH MAKING MACHINE

Precise web feed with 3 computer controlled servo motors Superior quality seals even when using thick film materials.

Description

Nishibe SBM-600-SP

This is a machine for making standing pouch and 3-side sealed pouch. This machine employs 2 AC servo motors for film feeding and one independently operating AC servo motor for the up and down movement of the sealing units. The sealing time is set separately and remains constant independent of the running speed. Format changes are very fast and wastage is reduced to a minimum due to the easy, user-friendly loading of parameters by personal computer. The individual set-ups are stored in the computer for future reference and can also be output on the lineprinter if desired.

Nishibe SBM-600-SP Options

Specifications

Production Speed 3-side seal pouch: 30-180 cycles/min.
Standing pouch: 30-140 cycles/min.
* The production speed may be affected by the type of material and the cutting length.
Film Size Range Main film: W = 400mm-1250mm Diameter: 800mm
Bottom tape for standing pouch: W = 60mm-180mm Diameter: 500mm
Pouch Size Range
3-side seal pouch: W=75mm-600mm L=50mm-500mm
Standing pouch (1-lane production): W=80mm-200mm L=200mm-550mm
Standing pouch (2-lane production) : W=80mm-200mm L=100mm-275mm
Machine Weight 8500kg (Approx.)
Main Web Stand Horizontal Single Web Stand
Main Web Shaft 3-inch Air Shaft
Main Web Brake Automatic Control by value input
L.P.C. Mitsuhashi Line Position Controller
Bottom tape stand Vertical type
Bottom tape brake Automatic control (Operating side / Non-operating side 1 pc.each)
Bottom tape punching unit Single-punch holder 2 sets, Punch diameter 15mm, punch rail 1 set,
Evacuation unit 1set
Longitudinal Sealing Unit Heater (L:620mm L:520mm for standing pouch) : 4pcs.(W:80/50/50/80mm), Rubber Base
Longitudinal Cooling Unit Cooling Bar (L:520mm) : 4pcs.(W:70/30/30/70mm), Rubber Base
Razor Unit at the middle feed roller Razor Holder : 1pc., Trimming Guide
Side Sealing Unit 3units (Point Sealing Unit/ 1 unit)
Side Cooling Unit 2units
Razor Unit at the front feed roller Razor Holder : 4pcs., Trimming Guide
Monitor Touch Screen
Table Conveyor Up and down movement (Separate type)
Thermostat 14 pcs., Upper and lower limit warning
Alarms Start Discharge, Web Run Out, Web End, Web Splice, Bottom tape splice, Hole Error
Accessories Guillotine knives : 1set, Seal Bar (Longitudinal / Bottom) : 20pcs., Tools : 1set
Thermocouple Attaching type
Option Second Stage Unwinder
Floor Pick Up
NIRECO Tension Controller
Accumulator

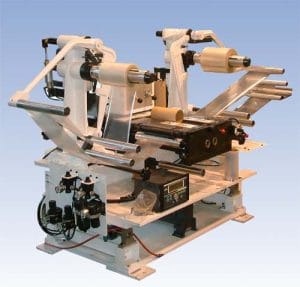

Automatic Bottom Tape Splicer
Extension Of Bottom Tape Unwinder

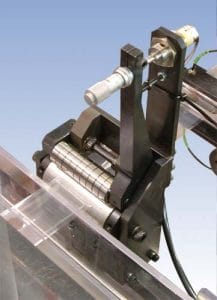

Bottom Tape Punch Refuse Detector

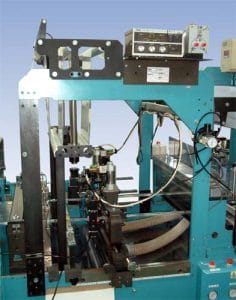

Automatic Bottom Tape Punch Positioning Unit

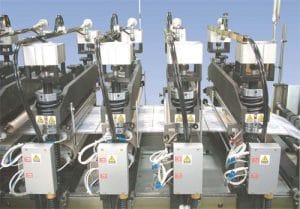

Skip Drive
Powder Sprayer
Punching Unit
Evacuation Unit
Twin Cutter
Cutter Controller
Power AC200V 3P Motor load 18kW AC200V Heater load 28kW
Cooling water 10-15 liters/min.
* Operating system is Windows XP.
* The above values and the configuration may be changed for improvement without previous notice.
* Machine specifications are slightly defferent from Japanese ones. Please ask our sales staffs for details.
