PSG NOW NMD-530 Pharmaceutical Type Metal Detector

PSG NOW NMD-530 Pharmaceutical Type Metal Detector

Pharmaceutical Type Metal Detector

Description

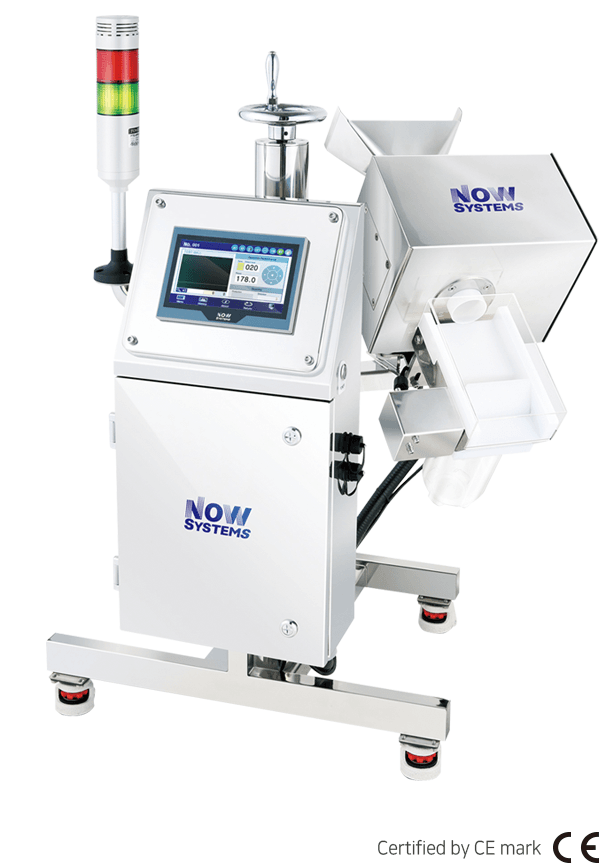

PSG NOW NMD-530 Pharmaceutical Type Metal Detector

NMD530 Series Pharmaceutical type metal detector is the most delicate system among NMD530 Series range products. Offering unparalleled accuracy in the detection of metallic contaminants in pharmaceutical products, it can detect and reject microscopic particles in pharmaceutical production lines at speeds of up to 15,000 tablets per minute. Even in difficult application, our innovative technology continues to provide exceptional performance. Robustly designed and easy to install and applicable to various types of production line due to its compact size and simple desorption of a stainless steel grade 316 chute and a solenoid type reject diverter with a transparent PVC rejecting bin.

Features
Sensitivity Well Beyond Industry Standards
Metal Separation Using a Solenoid Type Reject Diverter System
Full Color Touch Screen (7 inch TFT LCD)
Connectivity to External Devices
Auto-Setting Function of the Inspection Items
Setting Function of a Variety of Items for Convenient Operation
Manageable Metal Detecting History
Easy Software Upgrade
Full Validation Document

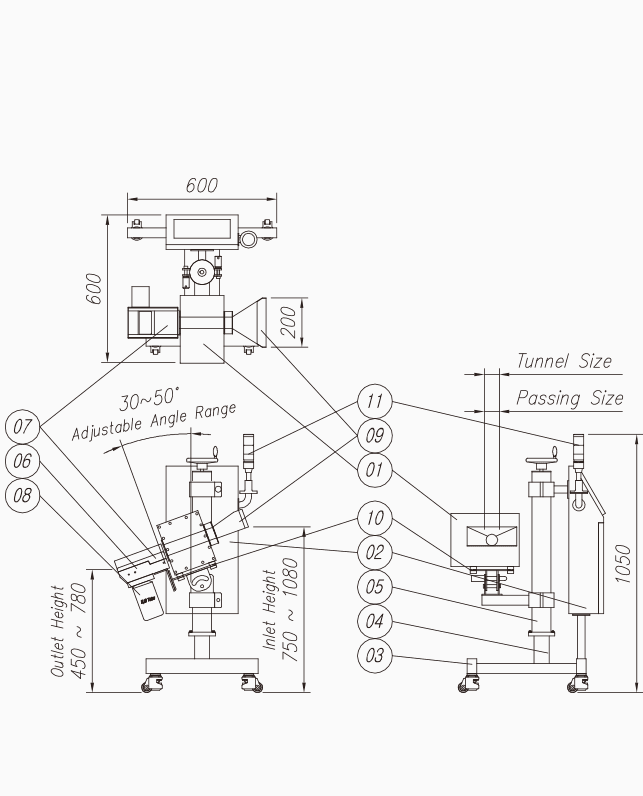

PSG NOW NMD530 Pharmaceutical Type

NO Description Material
1 Metal Detector Head SUS304
2 Controller Box SUS304
3 Frame SUS304
4 Guide Pipe SUS304
5 Up/Down Pipe SUS304
6 Reject Diverter(Removable) PE
7 Reject Chute PE
8 Rejecting Bin(Removable) PET
9 Chute(Removable) SUS316
10 Metal Detector Bracket SUS304
11 Tower Lamp .



Tunnel Size (mm) 40 50 60
Passing Size (mm) 35 45 55
Adjustable Angle Range 30 ~ 50˚
Inlet Height Min. 750 ~ Max. 1,080
Outlet Height Min. 450 ~ Max. 780



Outputs
> Relay (5A) / 1A1B 2EA, DC24V SOL, AC220V 0.2A
Power Supply
> Single Phase (110 to 220V)
> Free Cycle (50/60Hz)
> Fuse (3A)
Operating Temperature
> 0℃ to 50℃
(advised to use the machine under normal temperature)

Specifications
