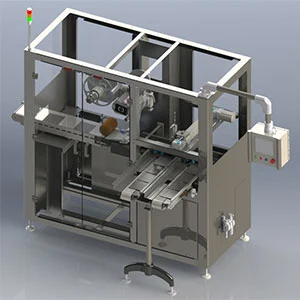

PSG Automatic Pouch Labeler
Fully automatic premade pouch labeling machine with dual-lane feeding — applies pressure-sensitive labels to filled or empty pouches at up to 100 pouches per mi
Key specifications
- Machine Type: Automatic Premade Pouch Labeler
- Speed: Up to 100 pouches/min (2 per cycle)
- Smallest Pouch: 100mm (W) × 150mm (L)
- Largest Pouch: 300mm (W) × 380mm (L)
- Pouch Types: Stand-Up, Zipper (incl. child-resistant), Gusseted, Flat, Corner Fitment
- Label Applicator: Herma servo-driven label head
- Label Roll: Max 300mm (11.5") dia, 80mm (3") core
- Controls: Allen Bradley PLC + HMI, recipe-based changeover
- Power / Air: 220V · 80 PSI @ 8 SCFM
- Footprint: 92" (L) × 32" (W) × 90" (H)
- Construction: Heavy-duty tubular stainless steel, NEMA 4X control box
The PSG Automatic Pouch Labeler applies pressure-sensitive labels to filled or empty premade pouches with precision that holds up at production speed — two pouches per cycle, up to 100 per minute. It handles the pouch styles that trip up ordinary labelers: child-resistant zippers, press-to-close zippers, bottom gussets, and corner fitment (spouted) pouches. A dual-lane powered magazine feeds pouches to a pick-and-place head, where suction cups set each one onto a continuous-motion cleated conveyor for exact alignment under the Herma servo label applicator. Recipe-based changeovers from the Al
