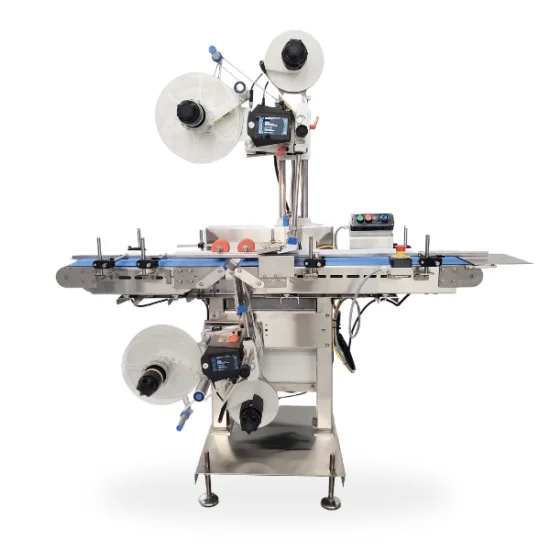

PSG Top & Bottom Labeler
Automatic top and bottom labeling machine — applies labels to both sides of pouches, trays, tubs, and cartons in one pass at speeds up to 75 products per minute
Key specifications
- Machine Type: Automatic Top & Bottom Labeler
- Speed: Up to 75 products/min
- Products: Pouches (incl. corner fitment), trays, tubs, cartons — any flat product
- Label Applicators: Herma servo (top + bottom)
- Label Roll: Max 300mm (11.5") diameter
- Label Height: 160mm standard (240mm / 300mm optional)
- Conveyor: Split conveyor with nylon belts
- Power / Air: 208V, 1ph, 60Hz / 24VDC · 80 PSI, 6 SCFM (some applications)
- Environment: IP65 applicators + full washdown conveyor available
Label both sides of a product in one pass. The PSG Top & Bottom Labeler runs twin Herma servo applicators — one above the conveyor, one below — to place pressure-sensitive labels on pouches (including corner fitment), trays, tubs, cartons, and virtually any flat product at up to 75 per minute. One machine, one operator, no second labeling station. A split conveyor with nylon belts holds products flat and stable through both applicators, so top and bottom labels land in register every time. Label roll changes are quick, package size adjustments are tool-free, and the compact open frame drops i
