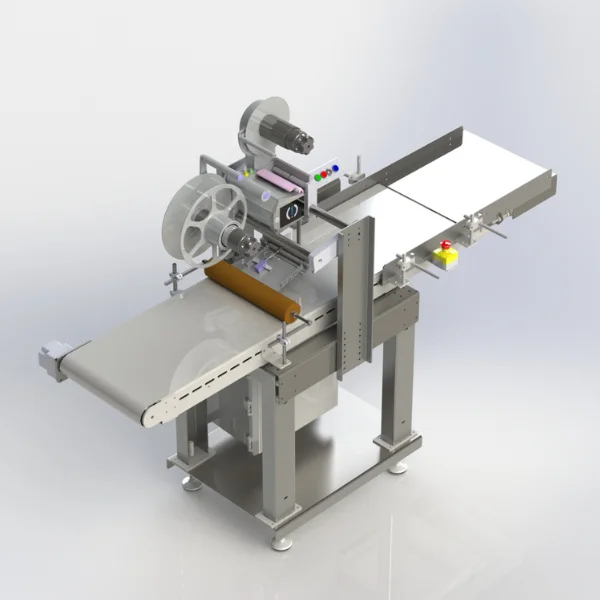

PSG Top Labeler XL
Semi-automatic top labeling system for extra-large pouches — IP65-rated, sub-minute changeovers, and speeds up to 40 pouches per minute. The bridge between hand
Key specifications
- Machine Type: Semi-Automatic Top Labeler for XL Pouches
- Speed: Up to 40 pouches/min
- Products: Extra-large stand-up, gusseted, zipper & corner fitment pouches — any flat container
- Label Applicator: Herma 500 servo with speed encoder
- Label Roll: Max 300mm (11.5") diameter
- Label Height: 160mm standard (240mm / 300mm optional)
- Conveyor: Variable-speed, FDA-approved seamless belt, adjustable guide rails
- Power: 208V, 1ph, 60Hz / 24VDC
- Environment: IP65 rated, stainless steel floor stand
Big pouches are where most labelers give up. The PSG Top Labeler XL is built for them — oversized stand-up, gusseted, zipper-style, and corner fitment formats get accurate pressure-sensitive labels at up to 40 pouches per minute. It's the step up for manufacturers and co-packers who have outgrown hand labeling but aren't ready for full automation. Operation is simple: place a pouch on the variable-speed conveyor, and positioning sensors trigger the labeling cycle automatically — accurate placement no matter how irregular the infeed. The Herma 500 servo applicator syncs to conveyor speed via e
