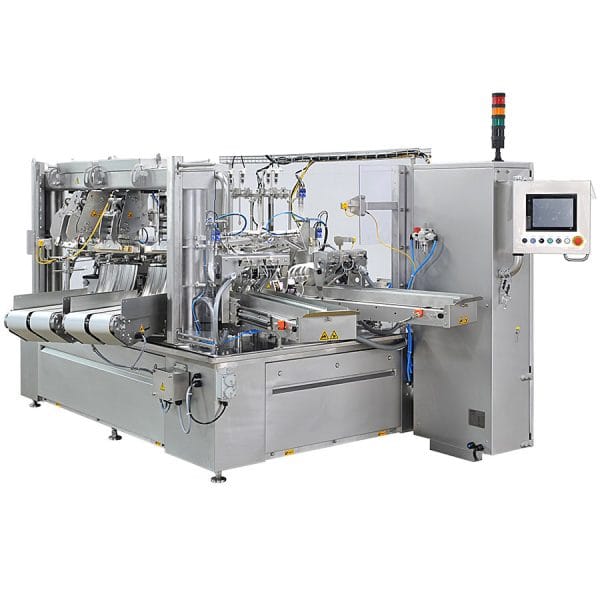

PSG LEE RQ-328
7-station quadplex premade pouch fill-seal machine — 80–120 mm pouch width, speeds up to 180 ppm depending on fill and pouch size.
Key specifications
- Stations: 7
- Pouch Width: 80 – 120 mm
- Pouch Length: Up to 250 mm
- Speed: 140 – 160 BPM (up to 180 ppm depending on fill & pouch size)
- Machine Type: Quadplex Premade Pouch Fill-Seal
- Configuration: Quad-lane (Quadplex)
- Pouch Styles: 3-Side, 4-Side, Stand-Up, Zipper, Retort
- Footprint (W × D): 3813 × 2714 mm
- Height: 2183 mm
- Industries: Food, Beverages, Pet Food, Healthcare
The PSG LEE RQ-328 is a 7-station quadplex premade pouch fill-seal machine that processes four pouches simultaneously per station cycle. Rated production speed is 140–160 BPM, with speeds up to 180 ppm depending on filling characteristics and pouch size. It handles premade pouch formats including 3-side seal, 4-side seal, stand-up pouches, zipper pouches, retort pouches, and spouted pouches. Standard process: pouch loading → option device (date coding, etc.) → pouch opening → product filling → sealing → cooling → discharging.
