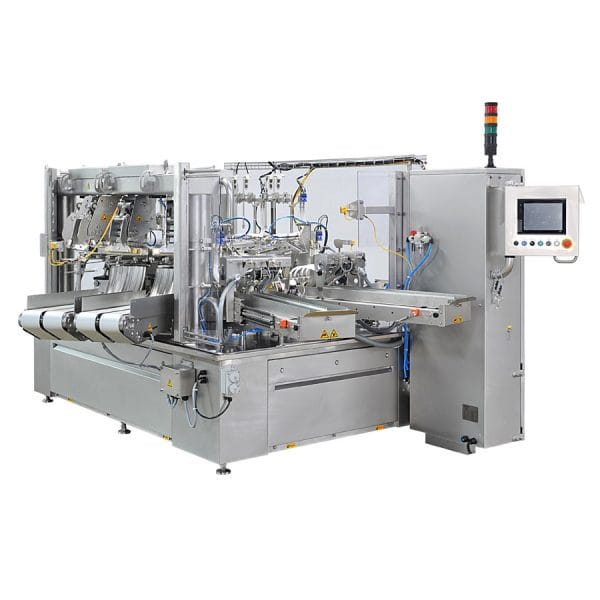

PSG LEE RQ-332
8-station quadplex premade pouch machine that adds a second option station after filling, for pouches 80–120 mm wide at 140–160 a minute.
Key specifications
- Stations: 8
- Pouch Width: 80 – 120 mm
- Pouch Length: Up to 250 mm
- Speed: 140 – 160 BPM
- Machine Type: Quadplex Premade Pouch Fill-Seal
- Configuration: Quad-lane (Quadplex)
- Pouch Styles: 3-Side, 4-Side, Stand-Up, Zipper, Retort
- Footprint (W × D): 4681 × 3662 mm
- Height: 1819 mm
- Industries: Food, Beverages, Pet Food, Healthcare
The PSG LEE RQ-332 is the eight-station version of PSG LEE's quadplex premade pouch machine, filling and sealing four pouches 80–120 mm wide on every cycle. Its extra station sits between filling and sealing, where the seven-station RQ-328 goes straight to the sealer. That position gives room for another step before the pouch is closed, such as gas flushing or zipper closing, both available as options. It keeps the rated 140–160 pouches a minute and runs the same 3-side seal, 4-side seal, stand-up, zipper and retort pouches up to 250 mm long. The added station makes the machine larger, at 4,68
Industries served
- Food packaging
- Beverage packaging
- Pet Food packaging
- Cosmetics & Personal Care packaging
- Household & Home Care packaging
- Chemical packaging
