PSG NOW NAD4000 Standard-AB
Dual-detection aluminum-foil metal detector — inspects metalized and aluminum packaging with two detection zones.
Key specifications
- Belt Width: 250mm / 350mm
- Max Product Width: Up to 300mm
- Product Pass Height: 50–150mm (adjustable)
- Conveyor Length: 1,400–1,800mm (made to order)
- Conveyor Height: 600–1,000mm (made to order)
- Display: 5" LCD touch screen (mono)
- Detection Monitoring: 10-level LED bar
- Effective Detection Range: 230mm
- Test Pieces: Fe, Stainless
- Detection Signal: Belt stop + alarm, signal output (DC 24V)
- Belt Speed: 15–60 m/min (variable)
- Power: 220V ±10%, 50/60Hz, single phase

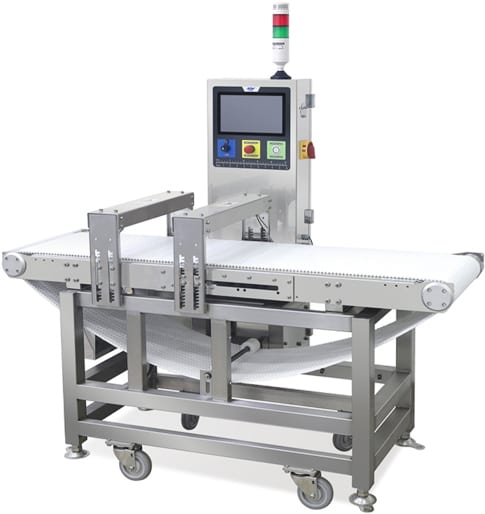

The PSG NOW NAD4000 Standard-AB is a conveyor metal detector engineered to inspect aluminum-packaged products — aluminum caps, sealed aluminum pouches, salted products, and retort packs — using a dual A/B detection arrangement for higher reliability through metalized films. It features a 5-inch mono touch screen, a 10-level LED detection bar, belt-stop with alarm and signal output, and a variable belt speed of 15–60 m/min.
