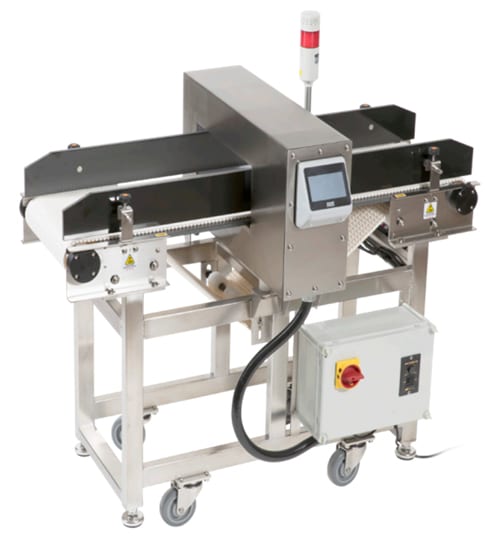

PSG NOW NMD500-3515
Conveyor metal detector with a 300 × 120 mm passage — the 300 mm belt of the NMD500-3510 with room for packs up to 120 mm tall.
Key specifications
- Head Tunnel Inner (W × H): 350 × 150 mm
- Product Passage (W × H): 300 × 120 mm
- Conveyor Length: 1,200 mm
- Belt Width: 300 mm
- Frame Width: 400 mm
- Total Width: 716 mm
- Detection Type: Multi-frequency (Fe / Non-Fe / SUS)
- Conveyor Belt Speed: Max 28 m/min (50/60Hz)
- Conveyor Height: 750 mm (+50 / -20 mm)
- Belt Material: Plastic Chain Modular / Urethane
- Sorting Method: Belt Stop, Audible Alarm & Red Tower Lamp
- Product Presets: 50
The NMD500-3515 pairs the compact 300 mm belt of the NMD500 range with a taller 350 × 150 mm head. The usable passage is 300 × 120 mm, enough for stand-up pouches laid flat, bagged snacks, tubs and mid-height cartons that won't clear the 70 mm opening of the NMD500-3510. Choose it when packs are up to 300 mm wide and between 70 and 120 mm tall. Because a lower tunnel generally catches smaller fragments, stay with the 3510 if everything you run is under 70 mm. If packs are wider than 300 mm, the NMD500-4515 offers the same 120 mm height on a 400 mm belt. It shares the 3510's 716 mm overall wi
Industries served
- Food packaging
- Beverage packaging
- Pet Food packaging
- Pharmaceutical packaging
- Nutraceutical packaging
- Cosmetics & Personal Care packaging
- Household & Home Care packaging
- Chemical packaging
- Industrial / Non-Food packaging
- Agriculture & Seeds packaging
