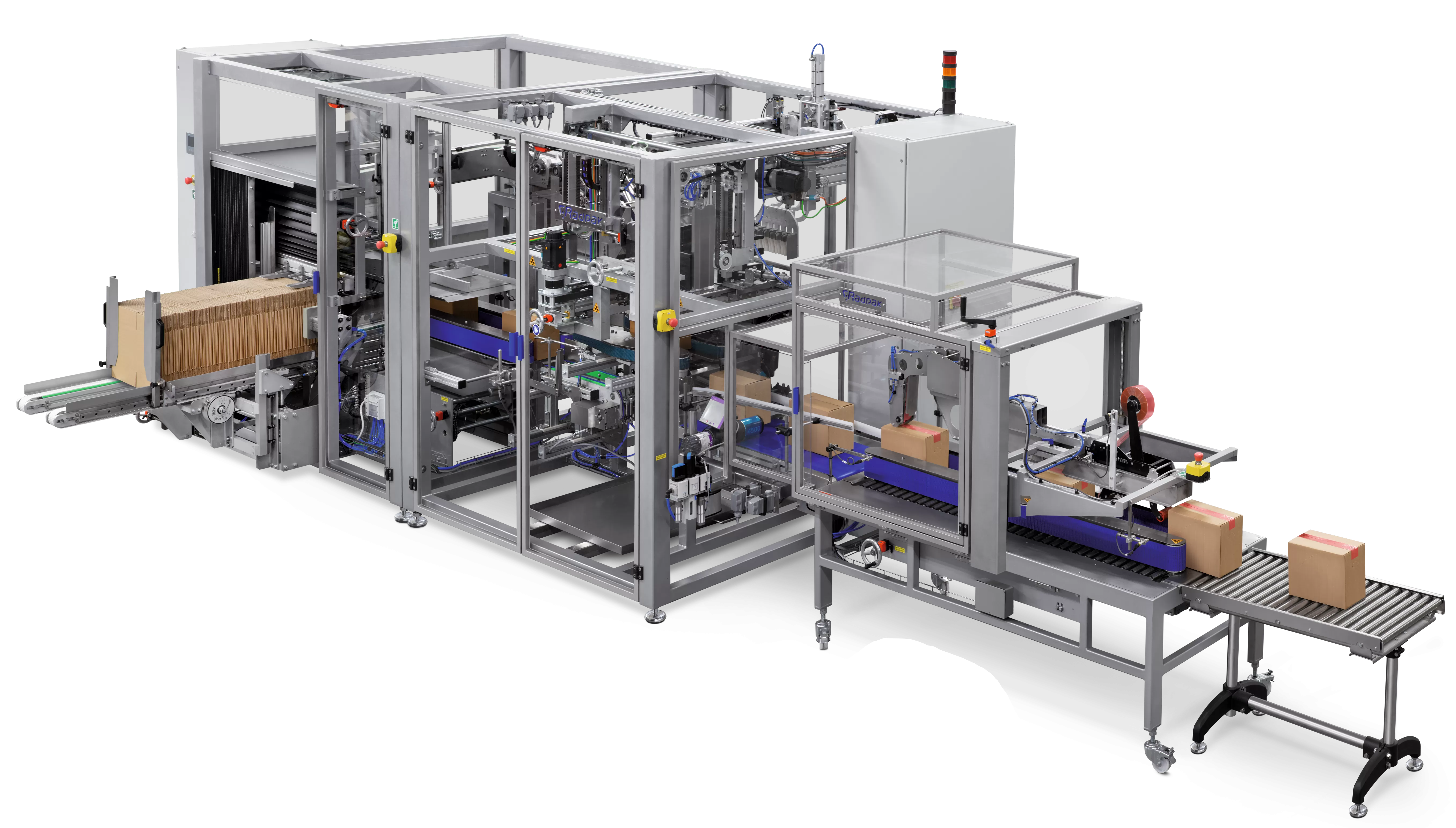

RGZ-100
Automatic case packing system using an index servo conveyor with servo-driven trapdoor insertion — up to 10 cartons per minute, FEFCO 0201 four-flap cartons.
Key specifications
- Machine Type: Top-Load Case Packer
- Speed: Up to 10 cartons/min
- Case Type: FEFCO 0201 four-flap carton (American box)
- Case Width: 150–400 mm
- Case Length: 300–600 mm
- Case Height: 150–400 mm
- Control System: PLC with touch panel on swing arm (Allen Bradley, Siemens, Schneider)
- Changeover Time: Approx. 40–60 minutes
The RGZ-100 machine has automatic case packing system using an index servo conveyor. Products are pushed out from the index conveyor and placed on a servo-driven trapdoor. Once a group of products is created, they are inserted from the top of the case. The system features automatic positioning system for four-flap cases under the trapdoor, which allows for more precise arrangement of the products in the case.
