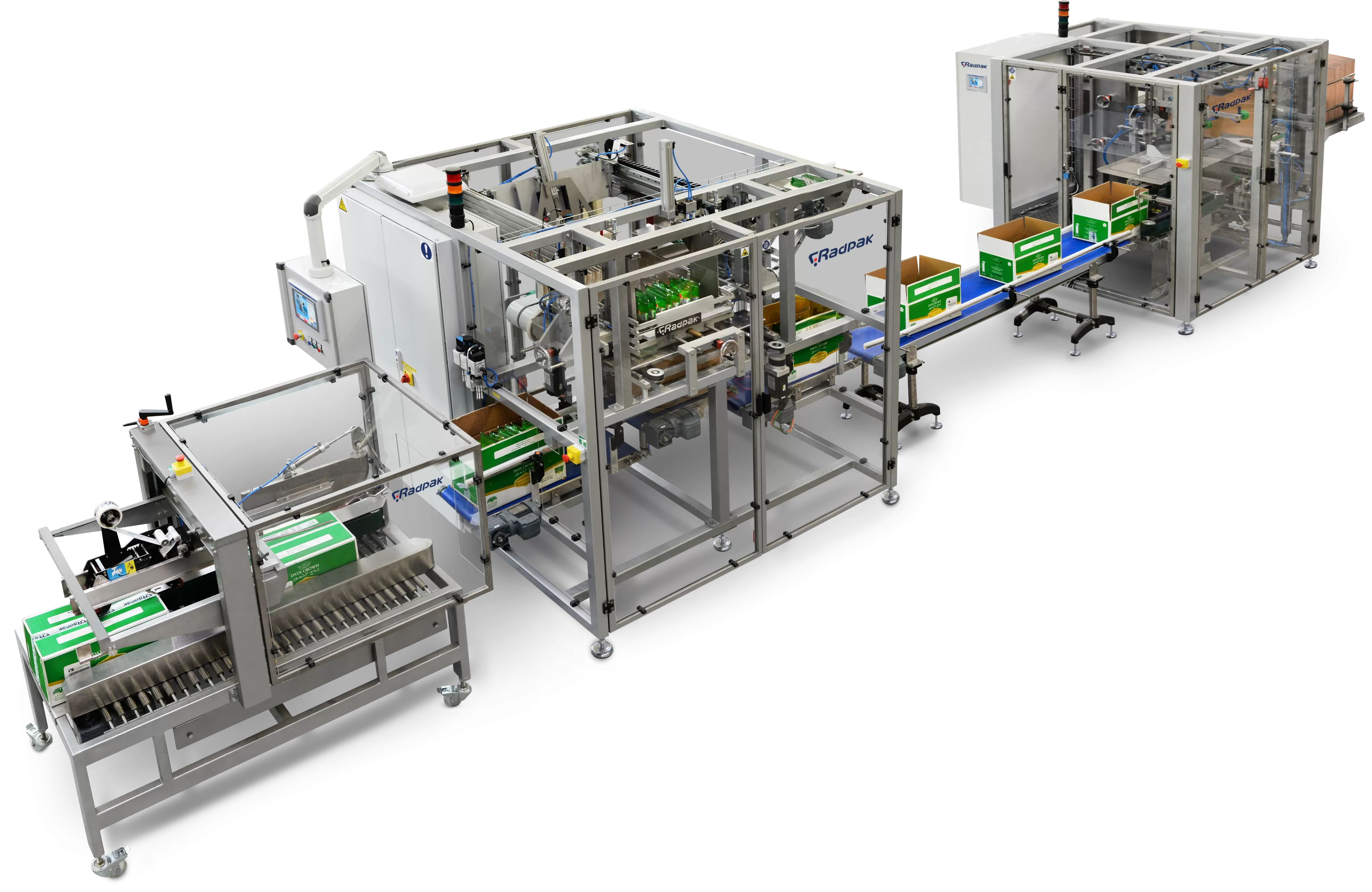

RGZ-50
Top-load case packer with automatic system for receiving formed four-flap cases from a stand-alone case erector — servo-driven pull nose conveying system for co
Key specifications
- Machine Type: Top-Load Case Packer
- Speed: Up to 10 cartons/min
- Case Type: Four-flap cartons
- Case Supply: From stand-alone case erector
- Product Counting: Servo-driven pull nose conveying system
- Loading Method: Top-load
- Sealing: Transferred to sealer (separate device)
- Control System: PLC with touch panel (Allen Bradley, Siemens, Schneider)
The RGZ-50 machine has automatic system for receiving formed four-flap cases from a stand-alone case erector. The next step is to count the product using servo driven pull nose conveying system, which then feeds the group of products into the case and, in the final stage, the case is transferred to the sealer.
