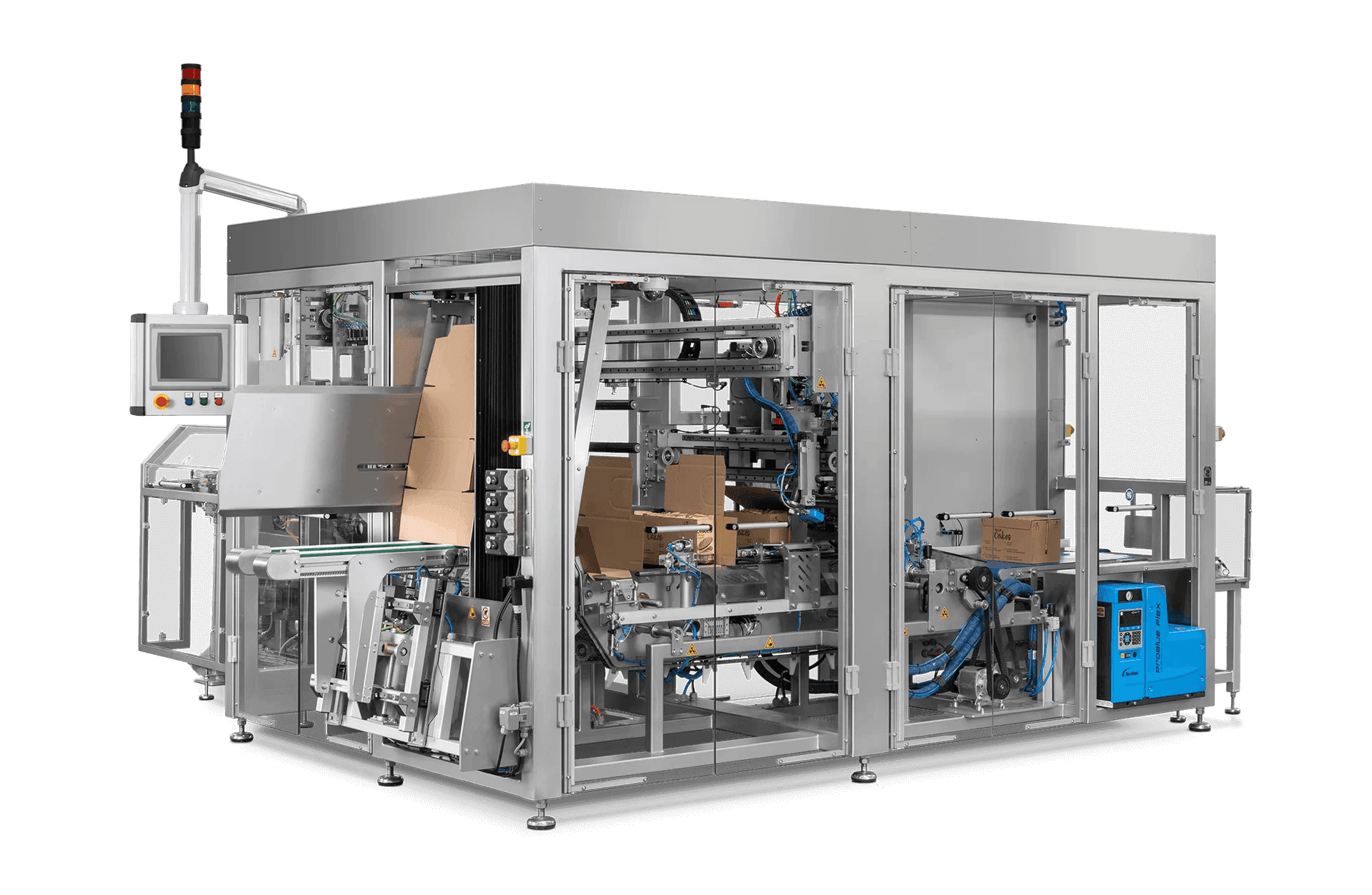

RKZ-18
Wrap-around case packer forming cases from flat cardboard blanks — robust mechanical design with servo drives, up to 20 cases per minute.
Key specifications
- Machine Type: Wrap-Around Case Packer
- Speed: Up to 20 cases/min
- Case Width (min/max): 80 / 200 mm
- Case Length (min/max): 200 / 400 mm
- Case Height (min/max): 140 / 200 mm
- Drive System: Servo Motors
- Control System: PLC (Allen Bradley)
The machine forms wrap-around cases from flat cardboard blanks, which are then precisely folded and glued around the product. The task of the wrap around case packaging system is to count the required number of products and pack them in a specific configuration into a pre-formed case.
