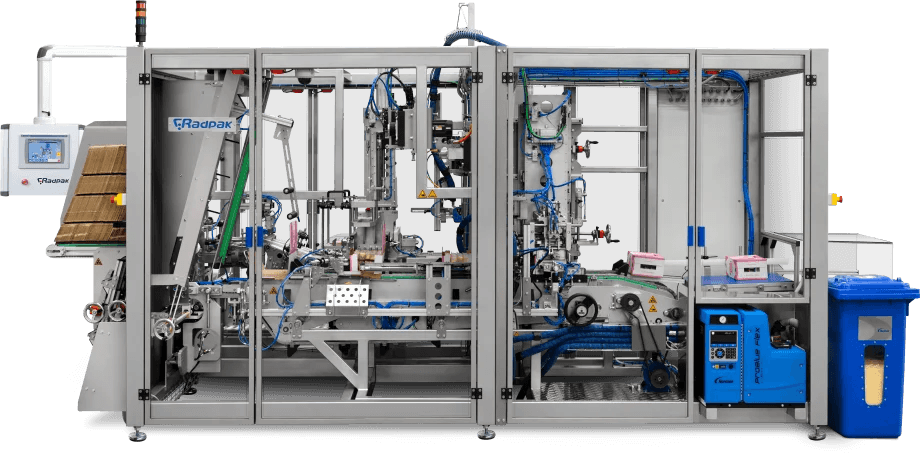

RKZ-22
Wrap-around and open tray case packer forming cases from flat cardboard blanks — servo-driven gripper with anti-collision comb pusher, up to 18 cases per minute
Key specifications
- Machine Type: Wrap-Around & Open Tray Case Packer
- Speed: Up to 18 cases/min
- Case Width (min/max): 115 / 300 mm
- Case Length (min/max): 200 / 400 mm
- Case Height (min/max): 180 / 300 mm
- Case Formation: From flat cardboard blanks
- Sealing Method: Nordson ProBlue Flex hot melt glue
- Control System: PLC with touch panel (Allen Bradley)
- Pneumatics: FESTO
- Sensors: SICK
The RKZ-22 is RADPAK's faster wrap-around/open tray case packer — up to 18 cases per minute — sized for cases up to 300 mm wide and 300 mm tall. Where the RKZ-27 trades speed for a much larger case window, the RKZ-22 is built for lines that need throughput on small-to-medium case sizes. The grouping system uses shooting conveyors to feed products at the correct speed, placing individual products vertically and counting them via a single index conveyor. A comb pusher equipped with an anti-collision system pushes products in the desired quantity to create groups. The cartoning system picks fla
