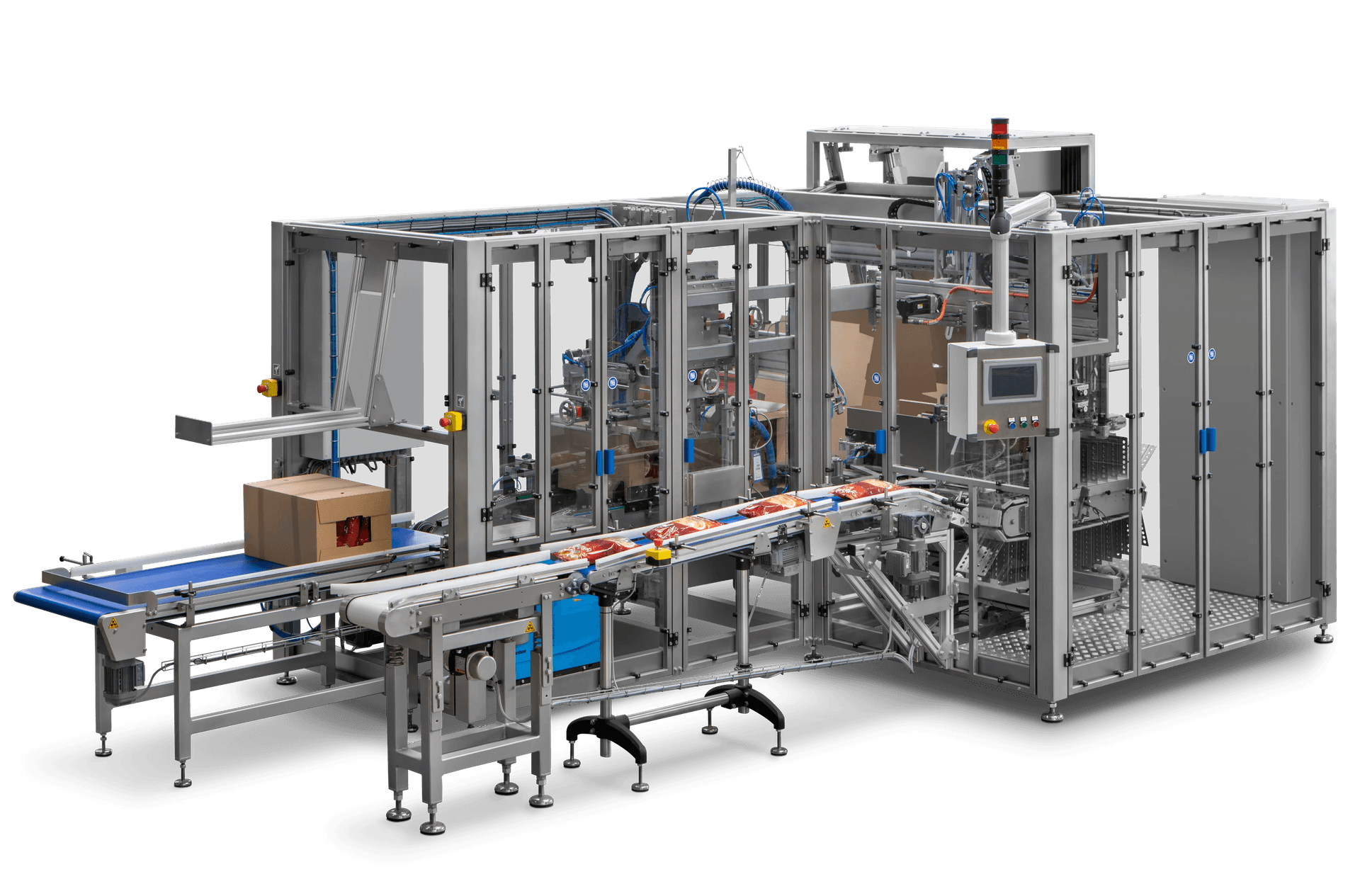

RKZ-27
Wrap-around and open tray case packer forming cases from flat cardboard blanks — servo-driven gripper with anti-collision comb pusher, up to 12 cases per minute
Key specifications
- Machine Type: Wrap-Around & Open Tray Case Packer
- Speed: Up to 12 cases/min
- Case Width (min/max): 170 / 600 mm
- Case Length (min/max): 200 / 400 mm
- Case Height (min/max): 180 / 350 mm
- Case Formation: From flat cardboard blanks
- Sealing Method: Nordson ProBlue Flex hot melt glue
- Control System: PLC with touch panel (Allen Bradley / Siemens / Schneider)
- Pneumatics: FESTO
- Sensors: SICK
The RKZ-27 is RADPAK's high-capacity wrap-around/open tray case packer, built for RADPAK's largest case format — up to 600 mm wide and 350 mm tall. It trades top speed for that capacity, running up to 12 cases per minute versus the RKZ-22's 18/min on smaller cases, making it the right pick when case size, not throughput, is the constraint. The grouping system uses shooting conveyors to feed products at the correct speed, placing individual products vertically and counting them via a single index conveyor. A comb pusher equipped with an anti-collision system pushes products in the desired quan
