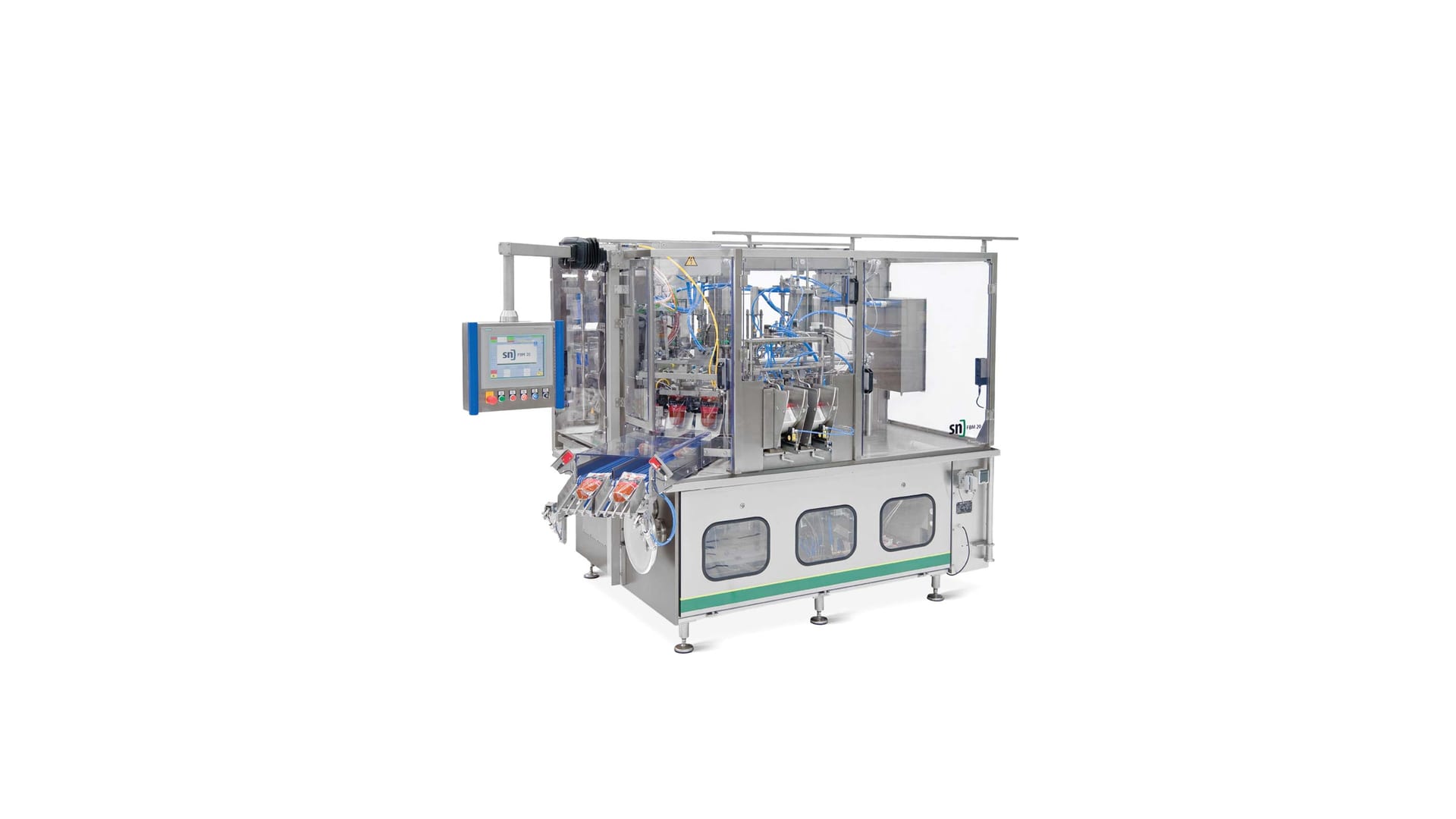

SN FBM 20 FS
FS-Series Pro fill-and-seal machine for premade pouches 100–300 mm wide in simplex or 80–150 mm in duplex, at up to 60 or 120 a minute.
Key specifications
- Type: Intermittent HFS Rotary
- Stations: 8
- Configuration: Simplex / Duplex
- Max. Output (Simplex): Up to 60 pouches/min
- Max. Output (Duplex): Up to 120 pouches/min
- Pouch Width (Simplex): 100 – 300 mm
- Pouch Width (Duplex): 80 – 150 mm
- Power: approx. 15 – 20 kVA
The SN FBM 20 FS is a horizontal fill-and-seal machine for premade pouches in SN's FS-Series Pro, built on an eight-station rotary table. In simplex it handles pouches 100–300 mm wide at up to 60 a minute, and in duplex it runs two narrower pouches, 80–150 mm wide, at up to 120 a minute, with lengths of 120–350 mm in both modes. That spread makes it an all-round machine for plants filling many premade pouch sizes. The FBM 22 FS shares the same speeds and footprint of about 2,500 × 2,450 mm but moves the format window up, to 120–350 mm in simplex and 120–190 mm in duplex. Choose the FBM 20 FS w
