SN FBM 22 FS
Large-format FS-Series Pro fill-and-seal machine for premade pouches up to 350 mm wide in simplex or 190 mm in duplex, at up to 60 or 120 a minute.
Key specifications
- Type: Intermittent HFS Rotary
- Stations: 8
- Configuration: Simplex / Duplex
- Max. Output (Simplex): Up to 60 pouches/min
- Max. Output (Duplex): Up to 120 pouches/min
- Pouch Width (Simplex): 120 – 350 mm
- Pouch Width (Duplex): 120 – 190 mm
- Power: approx. 15 – 20 kVA

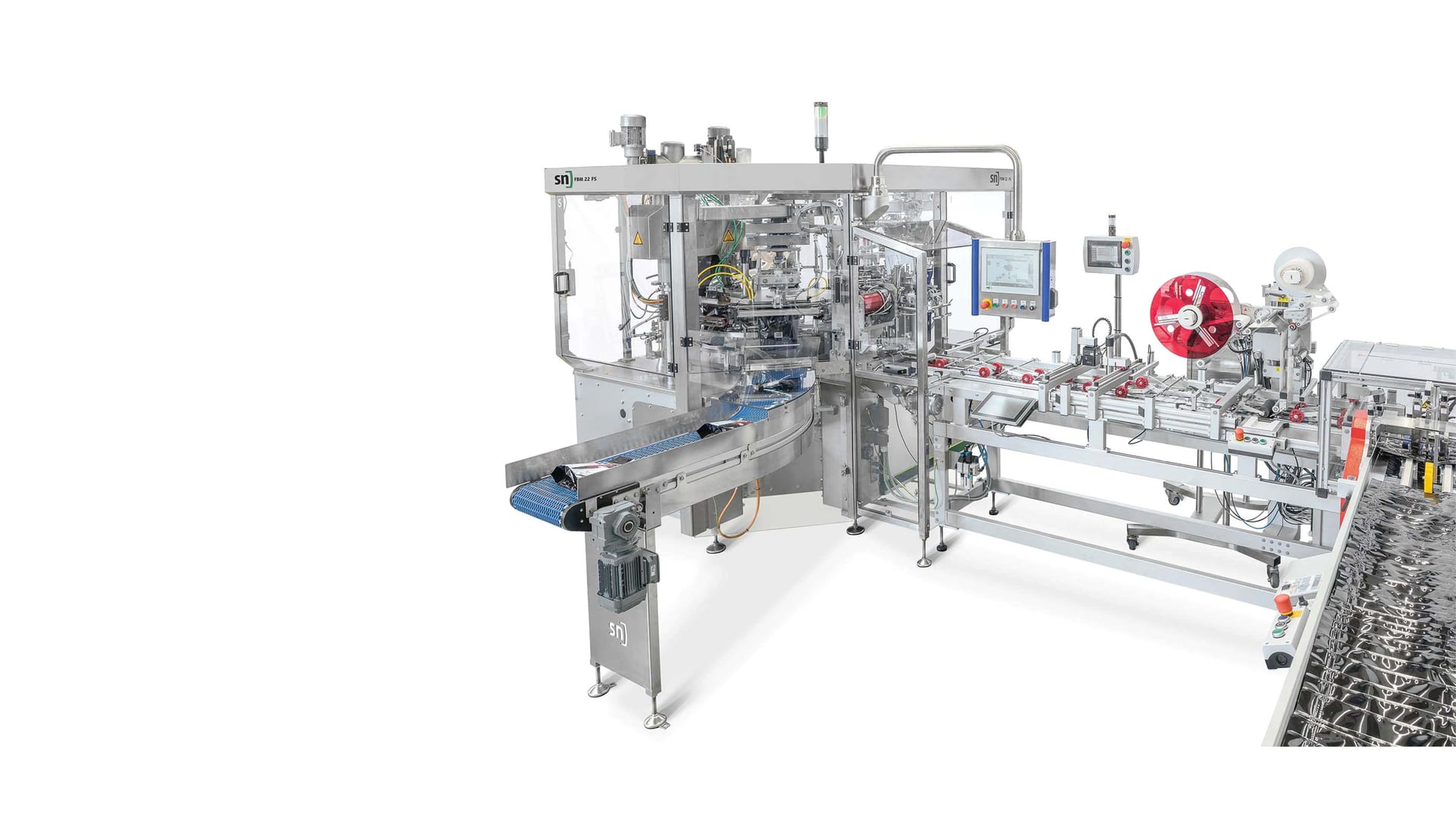

The SN FBM 22 FS is the large-format fill-and-seal machine in SN's FS-Series Pro, filling and sealing premade pouches on an eight-station rotary table. In simplex it takes pouches 120–350 mm wide, the widest in the FS-Series Pro, at up to 60 a minute, and in duplex two pouches 120–190 mm wide at up to 120 a minute. Pouch length runs from 100 to 350 mm. Compared with the FBM 20 FS, it gives up the smallest formats to make room for wider pouches, such as large stand-up and family-size packs. A segment-built rotary station, pouch control and an empty pouch removal system come as standard, and the
