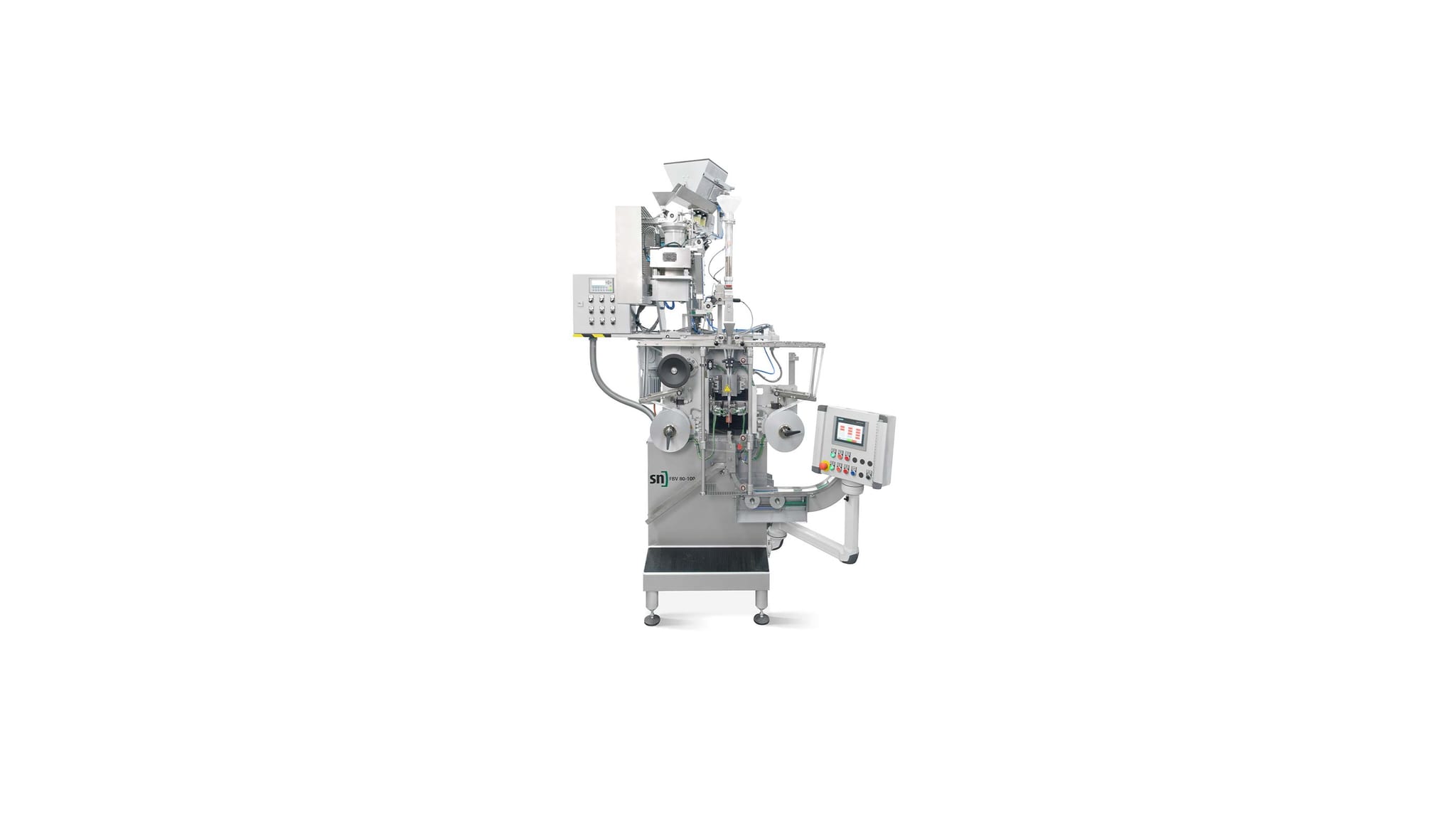

SN FBV 80-120
Vertical form, fill and seal machine (VFFS) from SN's Seed Series that makes flat seed pouches 35–80 mm wide from the reel and fills them…
Brands › SN Machines › Seed Series
Key specifications
- Type: Intermittent VFFS
- Machine Type: Vertical form, fill and seal machine (VFFS)
- Configuration: Simplex
- Max. Output: Up to 90 pouches/min
- Pouch Width: 35 – 80 mm
- Pouch Height: 35 – 120 mm
- Power: approx. 2.5 kVA
The SN FBV 80-120 is the compact vertical form, fill and seal machine (VFFS) in SN's Seed Series. It produces flat 3- or 4-side seal pouches from the reel, 35–80 mm wide and 35–120 mm high, fills them with seed and seals them, at up to 90 pouches a minute. Several dosing units can be integrated, so format and product changes take just a few minutes and are largely tool-free. It draws about 2.5 kVA and 50 Nl/min of air on a footprint of about 1,800 × 1,500 mm. Recyclable mono-materials, including plastic and paper, can be processed. The FBV 80-120 is also one of the two machines in SN's germ pr
