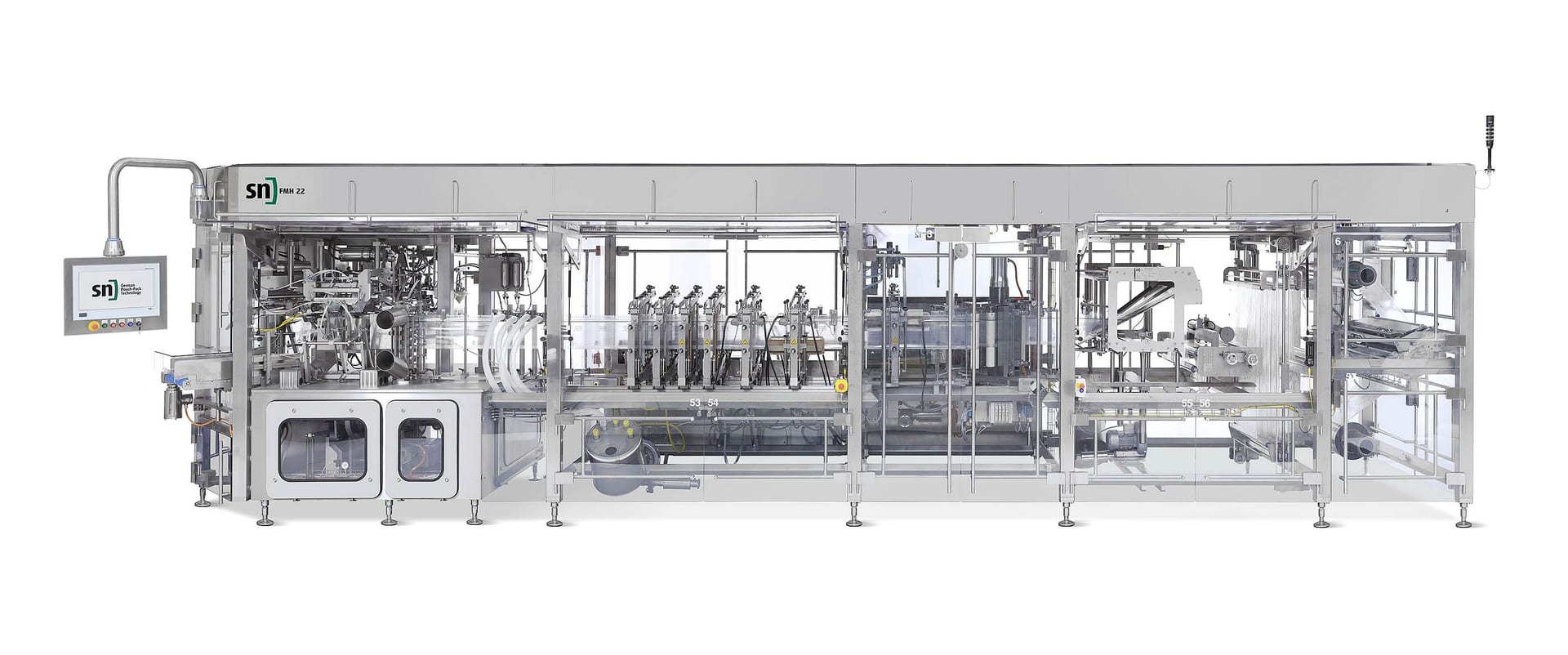

SN FMH 200
High-hygienic duplex HFFS rotary machine for wide pouches 150–308 mm, at up to 180 pouches a minute on a stainless steel washdown frame.
Key specifications
- Type: Intermittent HFFS Rotary
- Stations: 8 (optional 10)
- Design: High-Hygienic (wash down)
- Configuration: Duplex
- Max. Output: Up to 180 pouches/min
- Pouch Width: 150 – 308 mm
- Pouch Length: 80 – 350 mm
- Power: 30 kVA
The SN FMH 200 is the wide-format duplex machine in SN's Hygienic Series. It makes two pouches per cycle, 150–308 mm wide and 80–350 mm long, at up to 180 pouches a minute, on a washdown frame in stainless steel. That is the broadest format range of the FMH 200, 300 and 400, so it suits plants that run several pouch sizes on one line, from wide stand-up pouches to doypacks for powders, liquids and pastes. The FMH 300 and FMH 400 add a third and fourth lane for more output, but only on narrower pouches, up to 194 and 137 mm wide. Optional GripFix automatic gripper adjustment speeds up format ch
Industries served
- Food packaging
- Pet Food packaging
- Pharmaceutical packaging
- Cosmetics & Personal Care packaging
- Cheese & Dairy packaging
