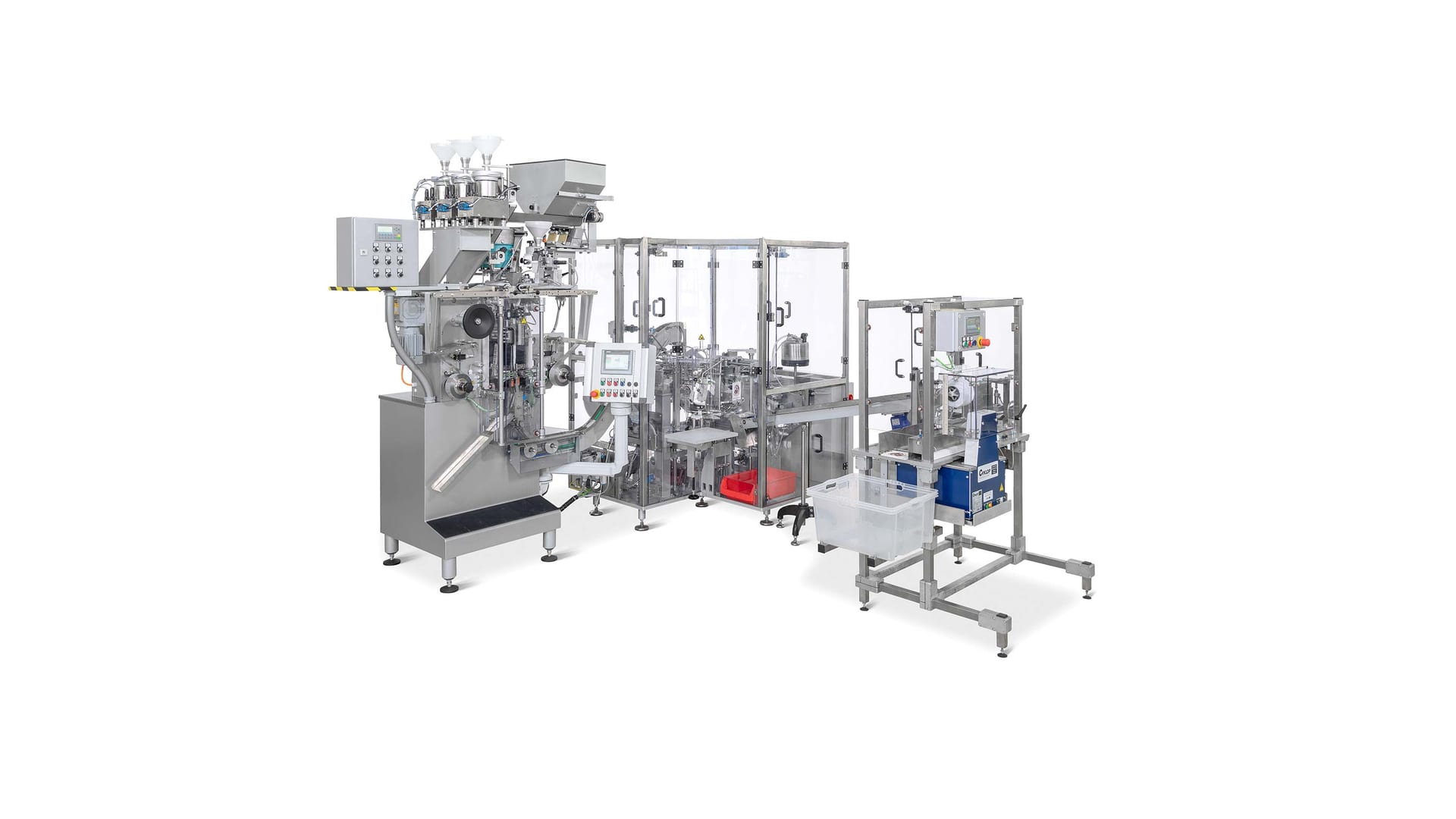

SN Germ Protection System
SN Seed Series line pairing the FBV 80-120 and M 40 to fill seed into germination protection pouches and outer pouches, at up to 85 a minute.
Key specifications
- Type: Intermittent HFFS Combined System
- Machine Type: Horizontal form, fill, and seal machine (HFFS)
- Configuration: Simplex (Combined)
- Max. Output: Up to 85 pouches/min
- Germ Protection Pouch Width: 35 – 80 mm
- Germ Protection Pouch Height: 35 – 120 mm
- Outer Pouch Width: 60 – 150 mm
- Outer Pouch Height: 70 – 220 mm
- Power: approx. 2.0 kVA
SN's germ protection system combines the vertical FBV 80-120 and the horizontal M 40 into one line for double-pouched seed. Seed is filled into small germination protection pouches, 35–80 mm wide and 35–120 mm tall, which are then packed into outer pouches of 60–150 × 70–220 mm, at up to 85 pouches a minute. The combined line needs a floor area of about 4,250 × 4,000 mm, and it adds a pouch magazine to the standard equipment of the two single machines. Options include processing of sprout protection pouches and seed tapes, as well as printer coding, hot stamping and dust extraction. As with th
