SN HSF 300
Triplex spout-series machine that makes three spouted pouches per cycle from the roll and fills liquids through the spout in a separate step…
Brands › SN Machines › Spout Series
Key specifications
- Type: HFFS with filling through the spout
- Configuration: Triplex
- Pouch Types: 3- or 4-side sealed or stand-up with center spout
- Max. Output: Up to 180 pouches/min
- Pouch Width: 80 – 120 mm
- Pouch Length: 120 – 250 mm
- Power: approx. 11 – 14 kVA

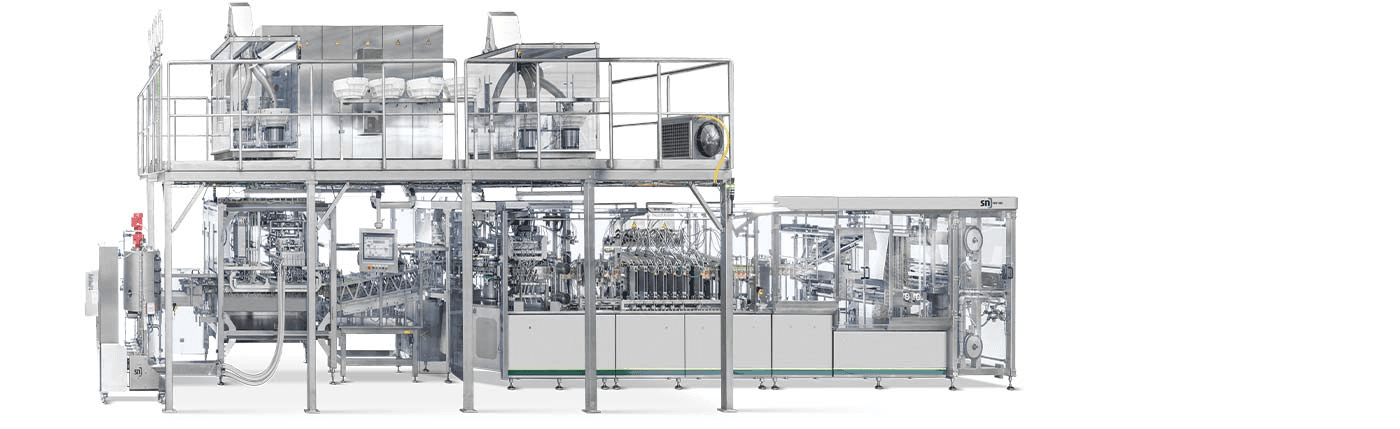

The SN HSF 300 makes spouted pouches from the roll and fills them with liquids through the spout, three pouches per cycle. Separating pouch production from filling keeps the spout area free of contamination, and filling through the spout allows a significantly higher fill level. The triplex version suits medium to high output rates of up to 180 pouches a minute, on pouches 80–120 mm wide and 120–250 mm long with a center spout. Servo motors drive the sealing, spouts and caps are supplied from a platform above the machine, and a buffer keeps filling running during a film reel change. It draws a
Industries served
- Food packaging
- Beverage packaging
- Cosmetics & Personal Care packaging
- Household & Home Care packaging
- Cheese & Dairy packaging
