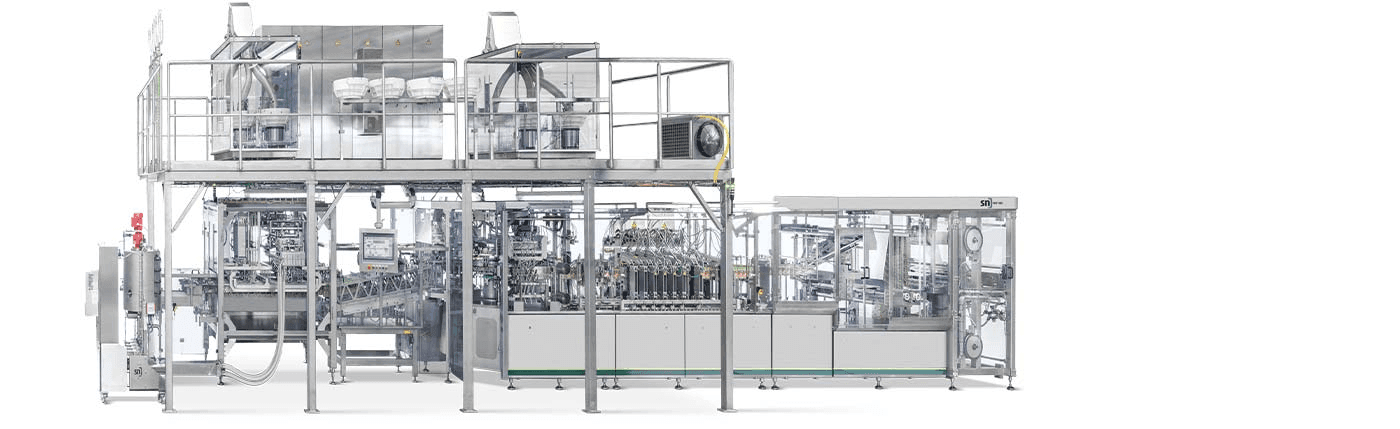

SN HSF 400
Quadruplex spout-series machine that makes four spouted pouches per cycle from the roll and fills liquids through the spout in a separate step…
Brands › SN Machines › Spout Series
Key specifications
- Type: HFFS with filling through the spout
- Configuration: Quadruplex
- Pouch Types: 3- or 4-side sealed or stand-up with center spout
- Max. Output: Up to 240 pouches/min
- Pouch Width: 70 – 100 mm
- Pouch Length: 90 – 250 mm
- Power: approx. 11 – 14 kVA
The SN HSF 400 is the highest-output HSF machine in SN's spout series, making spouted pouches from the roll and filling them with liquids through the spout, four pouches per cycle. Separating pouch production from filling keeps the spout area free of contamination, and filling through the spout allows a significantly higher fill level. The quadruplex version suits high output rates of up to 240 pouches a minute, on pouches 70–100 mm wide and 90–250 mm long with a center spout. Servo motors drive the sealing, spouts and caps are supplied from a platform above the machine, and a buffer keeps fil
Industries served
- Food packaging
- Beverage packaging
- Cosmetics & Personal Care packaging
- Household & Home Care packaging
- Cheese & Dairy packaging
