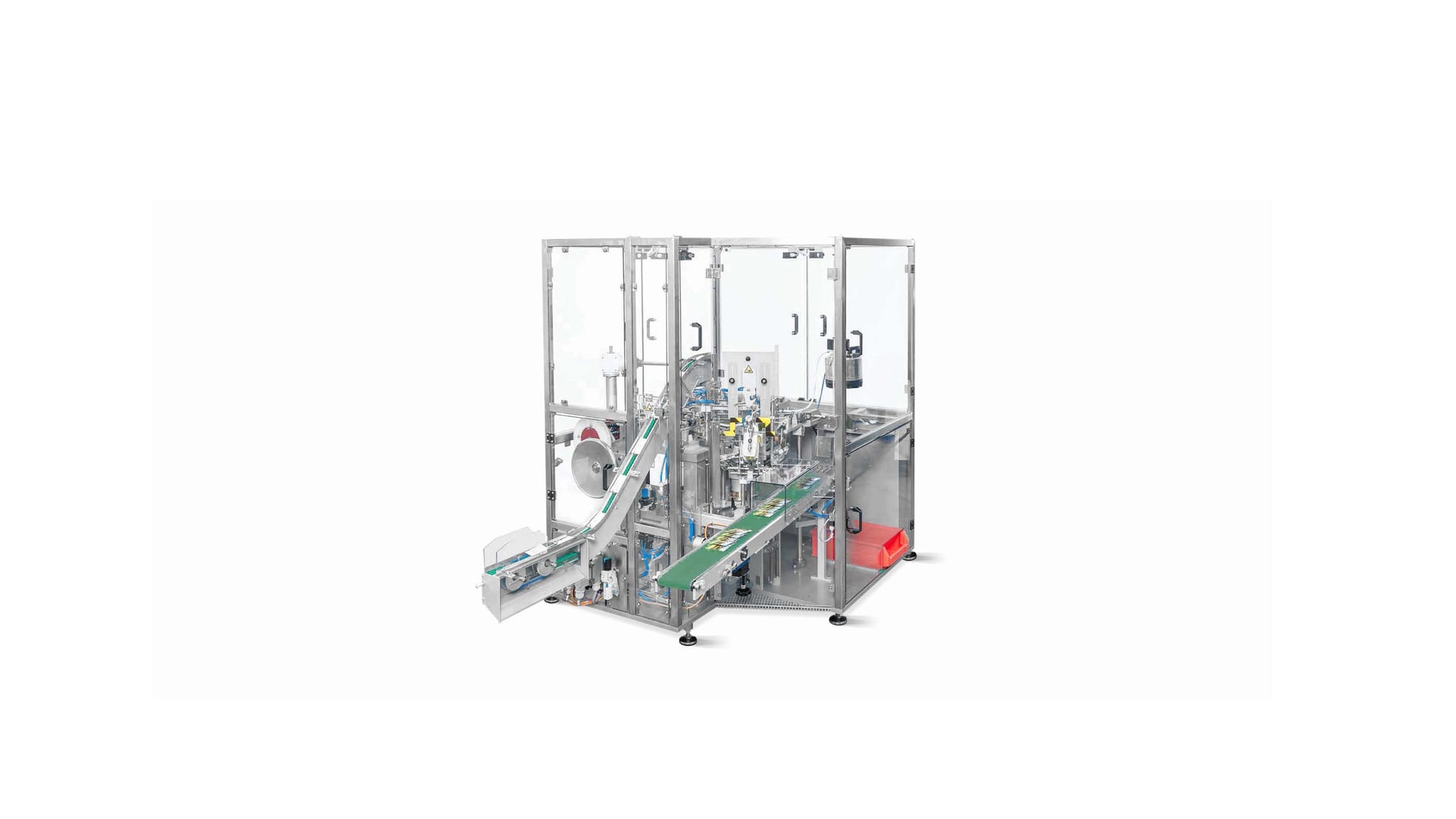

SN M 40
Horizontal fill and seal machine (HFS) from SN's Seed Series that fills seed into pre-made pouches 30–150 mm wide, at up to 85 pouches a minute.
Brands › SN Machines › Seed Series
Key specifications
- Type: Intermittent HFS
- Machine Type: Horizontal filling and sealing machine (HFS)
- Configuration: Simplex
- Max. Output: Up to 85 pouches/min
- Pouch Width: 30 – 150 mm
- Pouch Length: 70 – 220 mm
- Power: approx. 2.0 kVA
The SN M 40 is the horizontal fill and seal machine (HFS) in SN's Seed Series. It fills seed gently into pre-made 3- and 4-side sealed pouches or paper pouches, 30–150 mm wide and 70–220 mm long, at up to 85 pouches a minute. Several seed dosing units can be integrated, so changing to the next variety takes a few minutes and largely no tools, which suits flexible production runs with frequent product changes. It needs about 2.0 kVA and 150 Nl/min of air on a footprint of about 1,450 × 2,000 mm. Recyclable mono-materials, including plastic and paper, can be processed, and the M 40 is also one o
