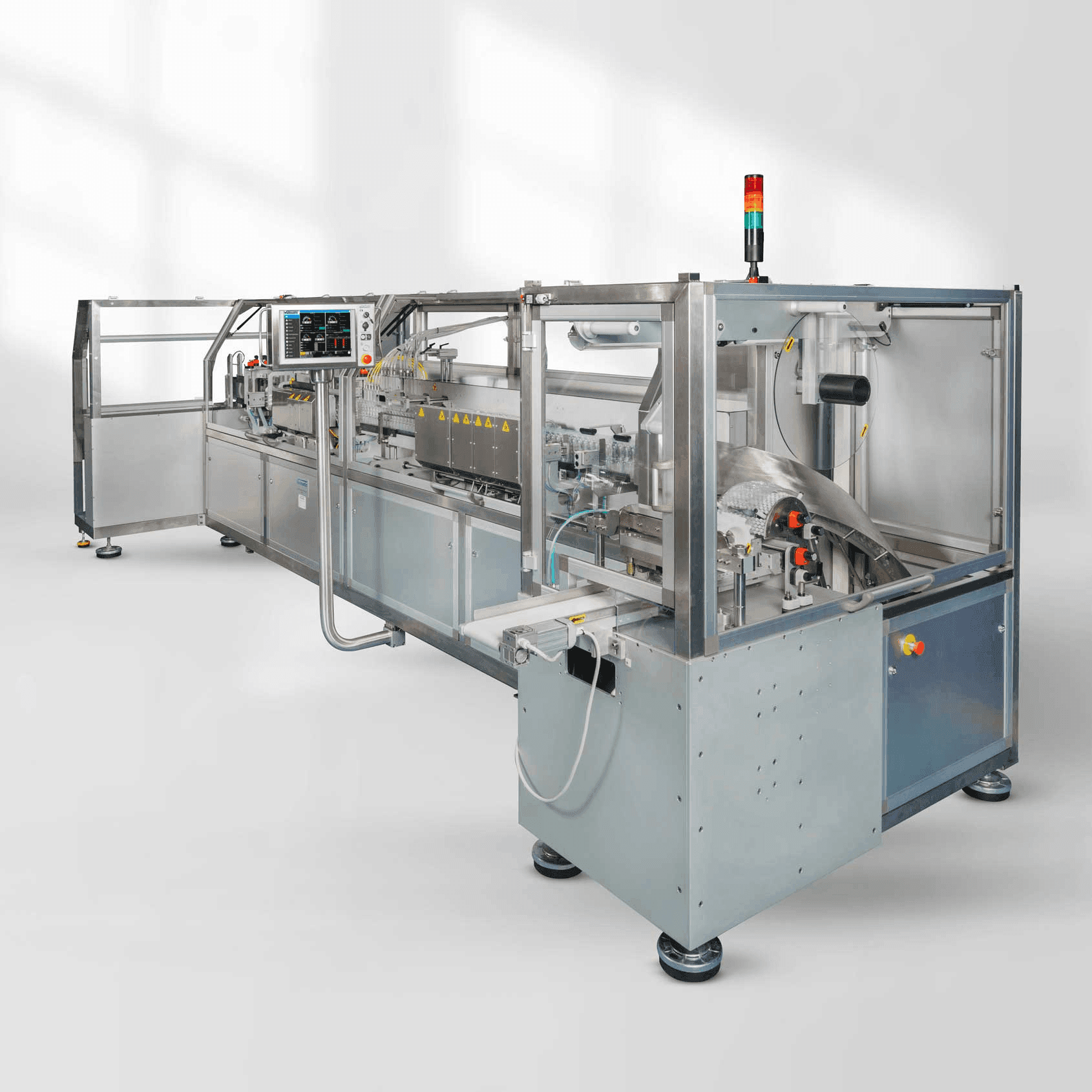

Valmatic VAL175
Thermo-forming and filling line for large productions of single-dose packaging — rapid format change from 1ml to 300ml, designed for continuous 24h operation.
Key specifications
- Process: Thermo-Forming / Filling / Sealing
- Type: Automatic Horizontal TFS Line
- Sector of Application: Chemical, pharmaceutical, veterinary, cosmetic and food fields
- Filling Capacity: 0.2 to 300 ml
- Hourly Production: Up to 21,000 vials/hour
- Machine Pitch: 175 mm
- Dimensions (L×W×H): 5880 × 2320 × 1730 mm (Width without carriage 1460 mm)
- Weight: 1850 Kg
- Used Material: PVC/PE, PET/PE, PVC/PVDC/PE, PET/EVOH/PE, PP/PET/EVOH/PE, ACLAR/PET/PE, PS/PE, PP/PE, PCTFE/PET/PE/EVOH/PE, PP/COC/PP/PE, PP/COC/EVOH/PP, and other thermoformable materials coupled with aluminum or paper
- Movement System Control: Pneumatic/PROFINET modules
- Building Materials: Stainless steel AISI 304 + ERGAL 55
- Required Operators: 1
VAL175 manufactures single-dose packaging and vials using single or coupled plastic film, osmotic membranes with aluminum on the rear, and also the innovative PAPERDOSE®. It is ideal for the cosmetic, chemical, pharmaceutical and food industries, meeting the needs of customers looking to produce in large batches. Designed to work continuously over 24 hours (3 shifts), guaranteeing ease of use and accessibility to the operator.
