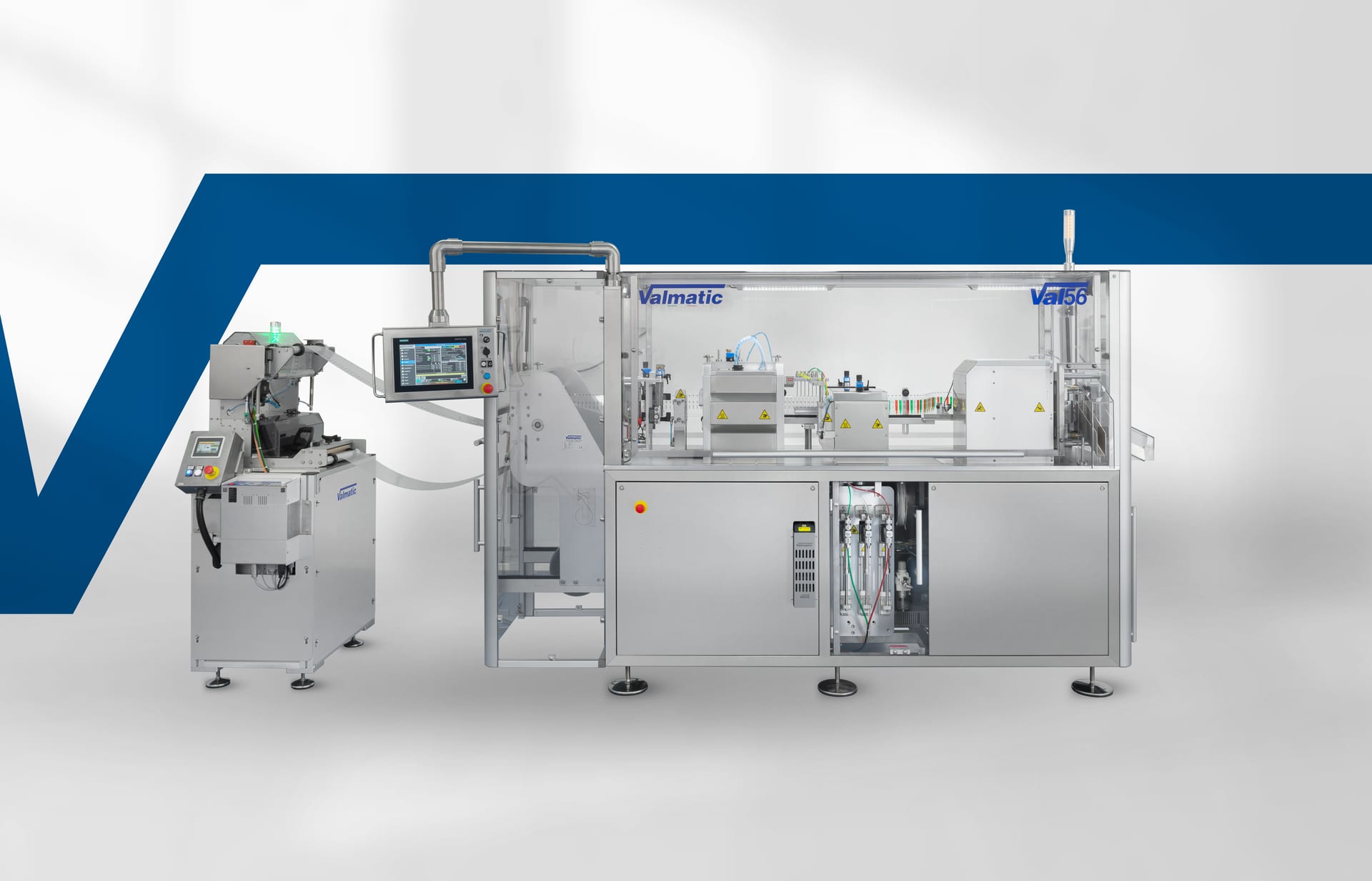

Valmatic VAL56
Automatic thermoforming machine for single-dose packaging and vials — up to 40 strokes/minute with integrated printer.
Key specifications
- Process: Thermoform / Fill / Seal
- Type: Automatic Horizontal TFS
- Sector of Application: Chemical, pharmaceutical, veterinary, cosmetic and food fields
- Filling Capacity: 0.20 to 150 ml
- Production Cycles: 40 cycles per minute
- Machine Pitch: 56.2 mm
- Dimensions (L×W×H): 3121 × 1008 × 1531 mm
- Weight: 1,200 Kg
- Used Materials: PET mono, PE mono, Paper, PVC/PE, PET/PE, PVC/PVDC/PE, PET/EVOH/PE, PP/PET/EVOH/PE, ACLAR/PET/PE, PS/PE, PP/PE, PCTFE/PET/PE/EVOH/PE, PP/COC/PP/PE, PP/COC/EVOH/PP, and plastics laminated coupled with Aluminium or Paper
- Building Materials: Stainless steel AISI 304 + ERGAL 55
- Products: Liquids, gels, creams, powders
- Features: Integrated in-line printer, flat-bottom containers, print centering on both sides, peelable single-doses, dual-product filling
VAL56 is a complete automatic thermoform machine, filling and sealing single-dose containers and vials in plastic film and paper. Automatic in all its stations, VAL56 contains years of experience in design and contract packing production. Valmatic is in fact the first user of the FFS Models designed internally and used in the co-packing department. Compact but fast, VAL56 has a high productivity up to 40 strokes per minute. The in-line printer makes the customer independent from external suppliers and offers the possibility of producing even small batches for presentations, fairs or sampling w
