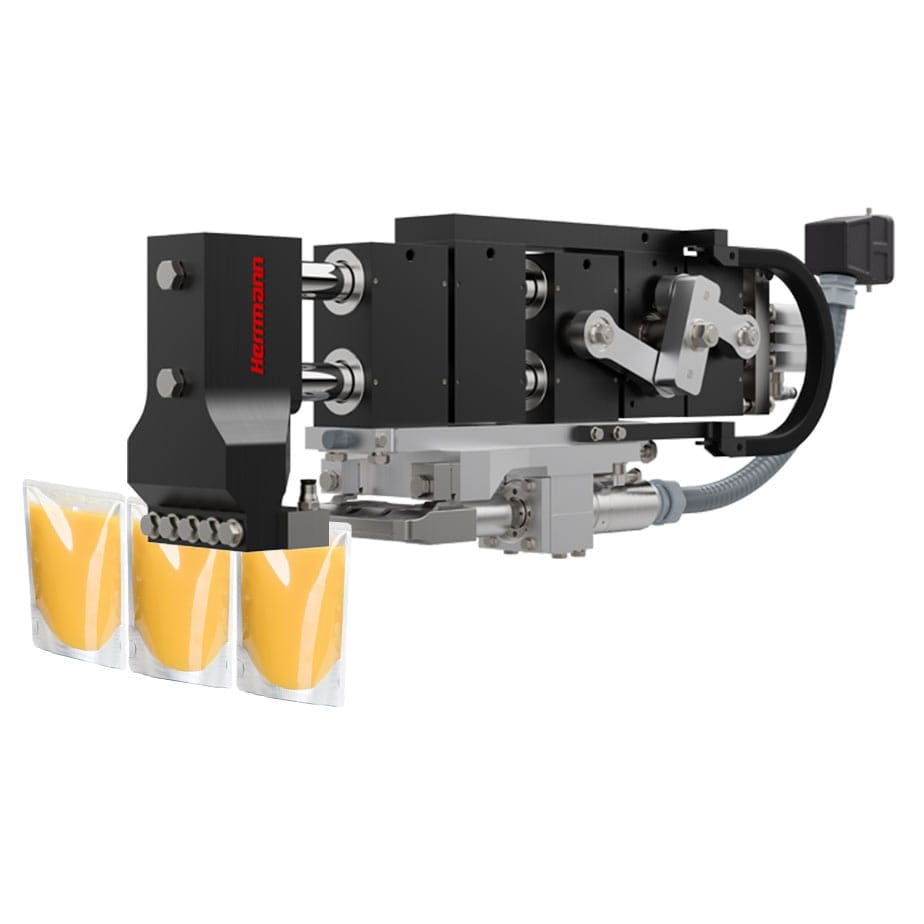

Herrmann Ultrasonics TSM Top Seal Modules
Ultrasonic top seal modules for hermetic, contamination-free package sealing without heat — ideal for temperature-sensitive products.
Key specifications
- Technology: Ultrasonic vibration sealing
- Operating Frequency: 30 and 35 kHz
- Sealing Length: Up to 207 mm
- Sealing Force: Up to 1200 N
- Quality Control: HDM ProcessControl (High Precision Distance Measurement)
- Protection Class: IP65/67 (wet environment capable)
- Drive Options: Pneumatic, electric, or mechanical main drive shaft
The TSM Top Seal Module from Herrmann Ultrasonics brings together the experiences from more than 1,000 top-seal sealing stations on the market. With its modular design, it is configurable for a variety of packaging machine types. The PACKLINE modules achieve strong and hermetic sealing while preventing burns caused to packaging material during machine downtimes. The module is optimally suited for integration in new machinery or as retrofit for existing machine designs. With IP65/67 protection class, it is suitable for use in wet environments with advanced cleaning requirements. The integrated
