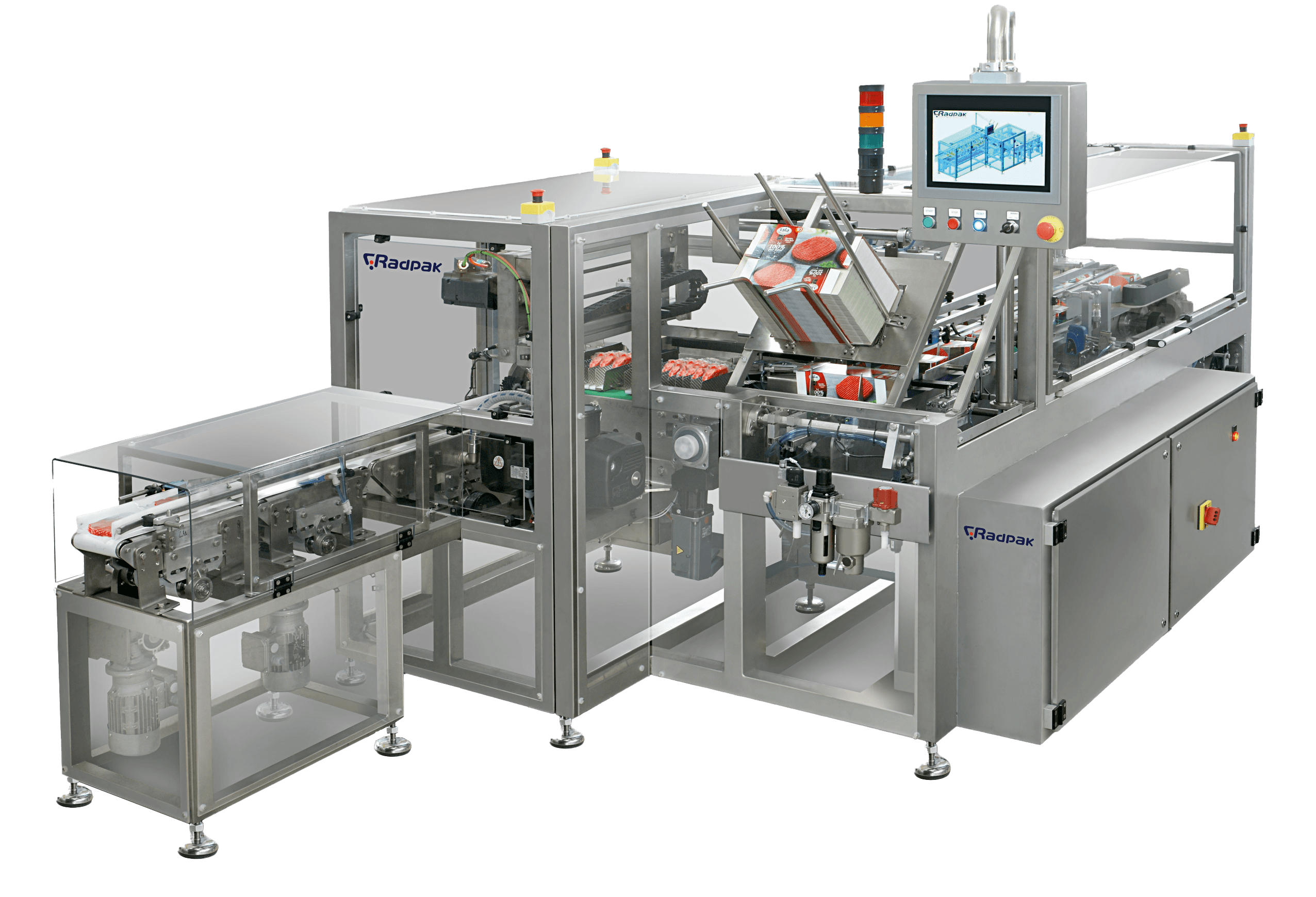

RKH-09S
Intermittent-motion horizontal cartoner for mid-size cartons 50–160 mm wide and 130–250 mm long, side-loaded at up to 60 cartons a minute.
Key specifications
- Motion Type: Intermittent
- Speed: Up to 60 cartons/min
- Loading: Horizontal carton forming, side loading
- Control System: PLC with touch panel on swing arm (Allen Bradley, Siemens)
- Carton Magazine: Manual replenishing, ~10 minutes of work
- Gluing System: Automatic hot-melt, Nordson ProBlue
- Drives: AC SEW/Nord
- Sensors: SICK
- Pneumatics: Festo
The RKH-09S covers the middle of RADPAK's intermittent horizontal cartoner range, with cartons 50–160 mm wide, 130–250 mm long and 25–80 mm high. It runs in start-stop mode at up to 60 cartons a minute, loading product from the side into cartons formed in the horizontal position. It shares its carton window with the continuous-motion RKH-09C, so the choice comes down to speed: the 09S covers lines up to 60 cartons a minute, and the 09C runs at up to 160. Smaller cartons go on the RKH-06S, and longer ones, up to 320 mm, on the RKH-12S. The blank magazine is filled by hand and holds about 10 m
Industries served
- Food packaging
- Pharmaceutical packaging
- Cosmetics & Personal Care packaging
- Household & Home Care packaging
