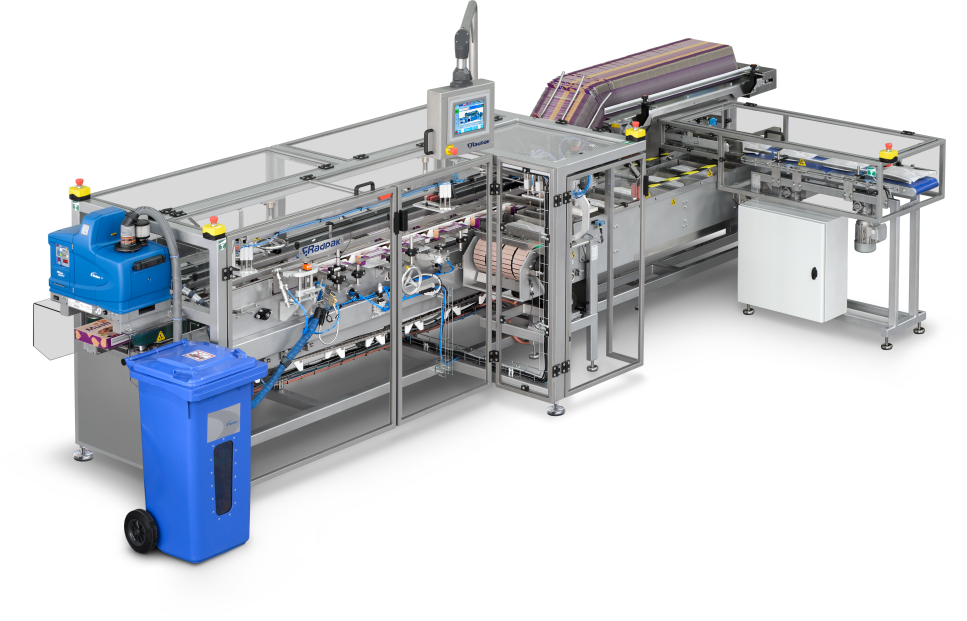

RKH-12S
RADPAK's largest intermittent horizontal cartoner — cartons up to 220 mm wide and 320 mm long, side-loaded in start-stop mode at up to 60 a minute.
Key specifications
- Motion Type: Intermittent
- Speed: Up to 60 cartons/min
- Loading: Horizontal carton forming, side loading
- Control System: PLC with touch panel on swing arm (Allen Bradley, Siemens)
- Carton Magazine: Manual replenishing, ~10 minutes of work
- Gluing System: Automatic hot-melt, Nordson ProBlue
- Drives: AC SEW/Nord
- Sensors: SICK
- Pneumatics: Festo
The RKH-12S is the large-carton model in RADPAK's intermittent horizontal cartoner range. It forms cartons 50–220 mm wide, 130–320 mm long and 25–80 mm high, and runs in start-stop mode at up to 60 a minute. It suits larger flat cartons on low- and mid-speed lines, such as multipacks and family-size portions, where a continuous-motion machine would be more speed than the line needs. The pusher arm loads the product from the side, and a Nordson ProBlue hot-melt system glues the carton closed. For higher speeds on large cartons, the continuous-motion RKH-12C runs at up to 140 a minute and take
Industries served
- Food packaging
- Pharmaceutical packaging
- Cosmetics & Personal Care packaging
- Household & Home Care packaging
