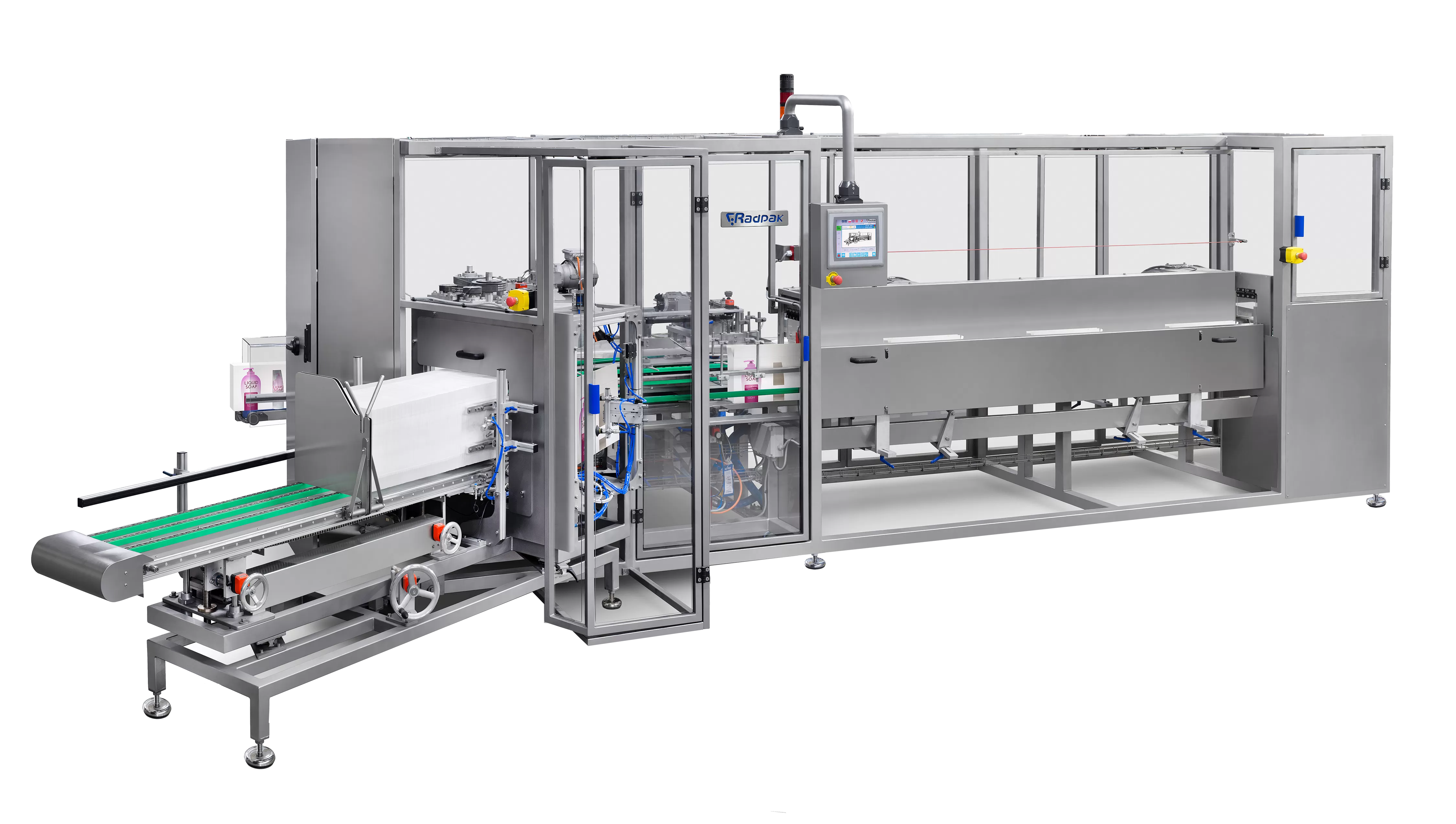

RKV-16C
Continuous-motion vertical cartoner for large cartons up to 300 mm wide and 360 mm long, at up to 50 a minute, with an optional dosing scale.
Key specifications
- Motion Type: Continuous
- Speed: Up to 50 cartons/min
- Control System: PLC with touch panel on swing arm (Allen Bradley, Siemens)
- Carton Magazine: ~800 mm long, mechanical feeding, manual refilling
- Gluing System: Automatic hot-melt, Nordson ProBlue
- Main Drive: AC SEW/Nord motor
- Sensors: SICK
- Pneumatics: Festo
The RKV-16C is the large-carton model among RADPAK's continuous-motion vertical cartoners. It handles cartons 150–300 mm wide and 180–360 mm long, erected upright and loaded from the top, at up to 50 cartons a minute. Its options include an integrated scale that weighs a set dose of product straight into each carton, so loose, free-flowing goods can be cartoned without a separate bag. With the scale fitted, the carton itself is the package. Compared with the intermittent RKV-16S, which runs the same carton range at up to 25 a minute, the 16C doubles the output for higher-volume lines. For ca
Industries served
- Food packaging
- Pharmaceutical packaging
- Cosmetics & Personal Care packaging
- Household & Home Care packaging
