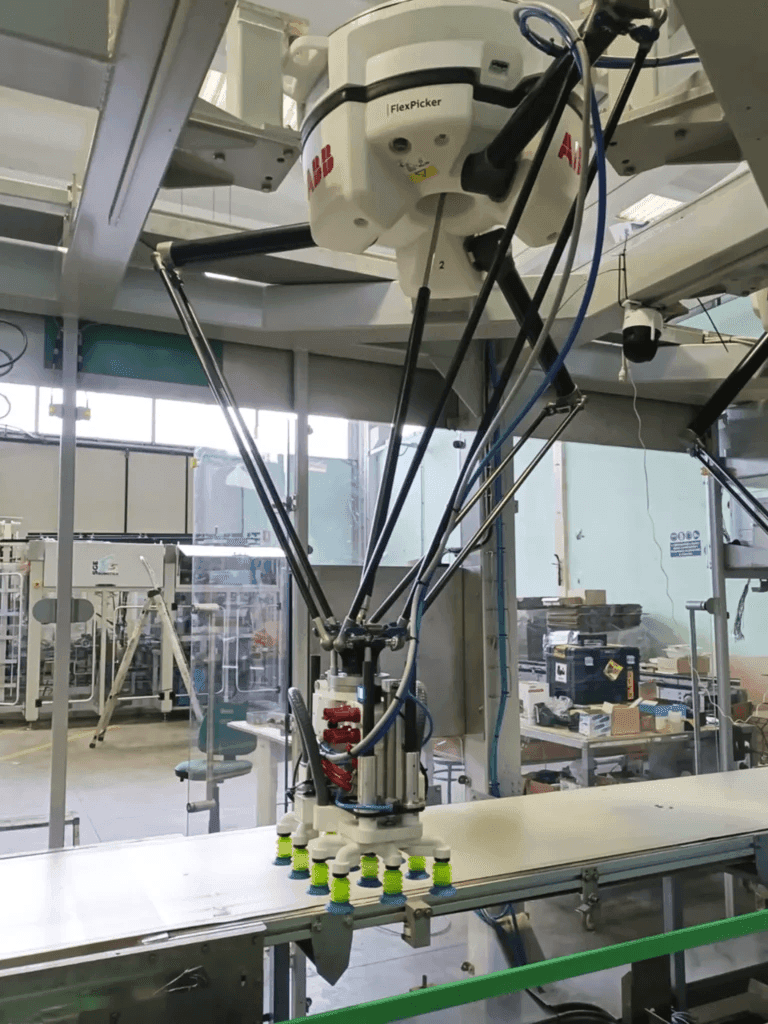

SGE Vision-Guided Picking System
Intelligent vision-guided robotic picking system with precise product position detection — handles randomly arriving, non-oriented products at high speed with s
Key specifications
- Machine Type: Vision-Guided Robotic Picking System
- Robot Type: Delta (Tripod) or SCARA
- Speed: Up to 150 picks/min per robot
- Vision System: Precise product position detection with AI processing
- Product Detection: Random orientation, non-oriented, overlapping
- Picking Method: Single-picking with accurate placement
- Conveyor Speed: Up to 60 m/min
- Multi-Robot: Up to 6 robots on single line
- Placement Accuracy: ±0.5 mm
- End-of-Arm Tooling: Vacuum cups, needle grippers, soft grippers
- Changeover: < 10 min — quick, safe, and repeatable
- Construction: Stainless steel, IP65 washdown capable
SGE Robotica's Vision-Guided Picking System leverages precision robotic vision guidance to detect and pick products regardless of how they arrive on the line. Products can be randomly positioned and completely non-oriented — the integrated vision system identifies each item's exact location and calculates the optimal pick point in real time. This intelligent approach eliminates the complexities of traditional mechanical handling systems, dramatically reducing adjustment requirements and format-part changeover needs. Multiple robots can operate cooperatively on a single line for higher throughp
